4G GPS Tracking Device
Product Description:iStartek 4G GPS Tracking Device VT900-L is the most technologically advanced LIVE GPS tracker in the world, with dedicated 2G, 3G, 4G solutions.
Detail:
 |
4G & 3G & 2G / GPS+ Beidou
4G LTE 3G 2G GPS+Beidou positioning |
 |
Support RFID/MSR
Privacy Protection by identification |
|||
 |
Support Temperature Sensor
Keep fresh transportation of the cold chain |
 |
Support OBD/CANBUS
Easy installation for reading vehicle fuel value |
|||
 |
Support Alcohol Sensor
Drunk driving alarm to improve driver safety |
 |
Support Fuel Sensor
Capacitive and ultrasonic fuel sensor optional |
|||
 |
Support iButton
Low cost for identification solution |
 |
Support 37+ Alarms
For driving behavior monitoring and vehicle safety protection |
|||
 |
Multiple I/O Interfaces
3 digital inputs, 2 digital outputs, 2 analog input and 3 RS232 port for the multi-functional application |
 |

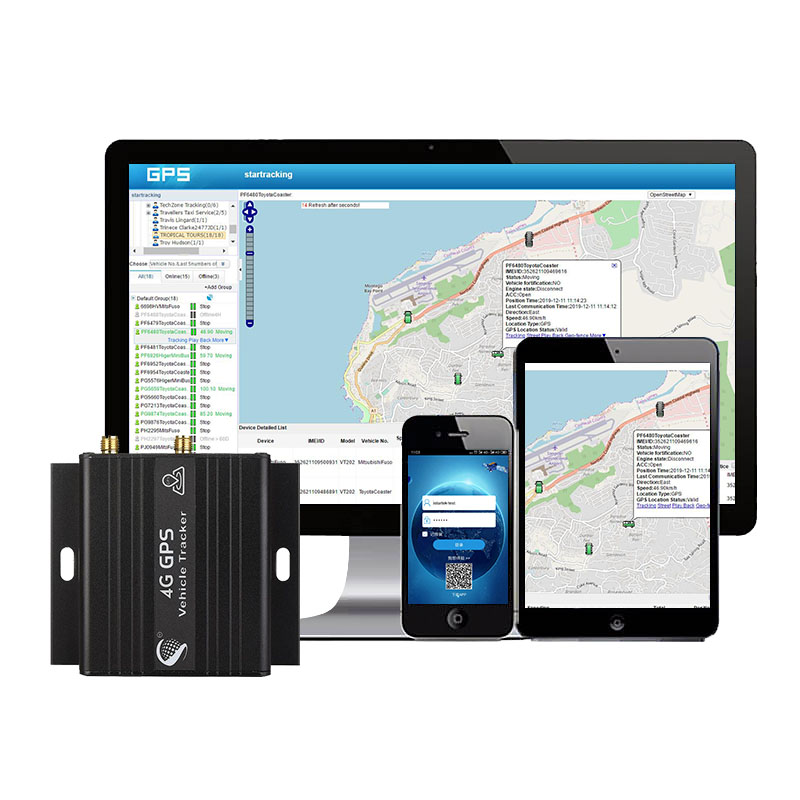

Tracked by: SMS, APP, Web
Reporting location in real-time through different interfaces. It is very easy to track by SMS, APP, Web. |
Features:
VT900-L is a LTE/WCDMA based tracking device, specially developed and designed for vehicle real-time tracking and fleet management.
VT900-L has an inbuilt GPS module to obtain accurate position data. This device utilizes its LTE/WCDMA capability to send position data to a specified mobile phone or server base for tracking and fleet management.
With internal memory, VT900-L can store GPS coordinates when there is no LTE/WCDMA connection, or at a specified interval requested by the user.
One optional feature of VT900-L is that a RS232 port Can connect RFID card reader, magnetic card reader and other external equipment.
Specification:
General Features
| Power Supply | 9V-36V/1.5A |
| Dimension | 65 x 61 x 26mm |
| Weight | 106g |
| Backup Battery | 500mAh |
| Normal Power Consumption | 65mA/h |
| Work Time | 33 hours in power saving mode and 7.5hours is normal mode |
| Operation Temperature | -20° to 55° C |
| Humidity | 5% to 95% Non-condensing |
| Memory | 8MB flash memory |
LTE/WCDMA/GSM Specifications
| Frequency | VT900-LMN: Cat-M/NB/GSM
LTE-FDD: B1/B2/B3/B4/B5/B8/B12/B13/B17/B18/B19/B20/B25*/B26*/B28 LTE-TDD: B39 (for Cat M only) EGPRS: 850/900/1800/1900MHz
VT900-LEC (EU)：Cat-1 (4G) LTE-FDD: B1/B3/B7/B8/B20/B28 WCDMA: B1/B8 GSM: B3/B8
VT900-LNS (US)：Cat-1 (4G) LTE-FDD: B2/B4/B5/B12/B13/B25/B26 WCDMA: B2/B4/B5 |
| 4G LTE Module | QUECTEL EG91(LEC,LNS) , BG96(LMN) |
| GSM Data Transmission | Multi-slot class 12 |
GNSS Specifications
| GPS Type | MTK MT3337 |
| Sensitivity | Acquisition -148dBm
Tracking -165dBm Reacquisition -160dBm |
| Position Accuracy | Autonomous: < 2.5m CEP |
| Velocity Accuracy | Without Aid: <0.1m/s |
| Channel | 22 (Tracking)/ 66 (Acquisition) |
| TTFF (Open Sky) | Cold Start: <15s
Warm Start: <5s Hot Start: <1s |
| Reacquisition Time | <1s |

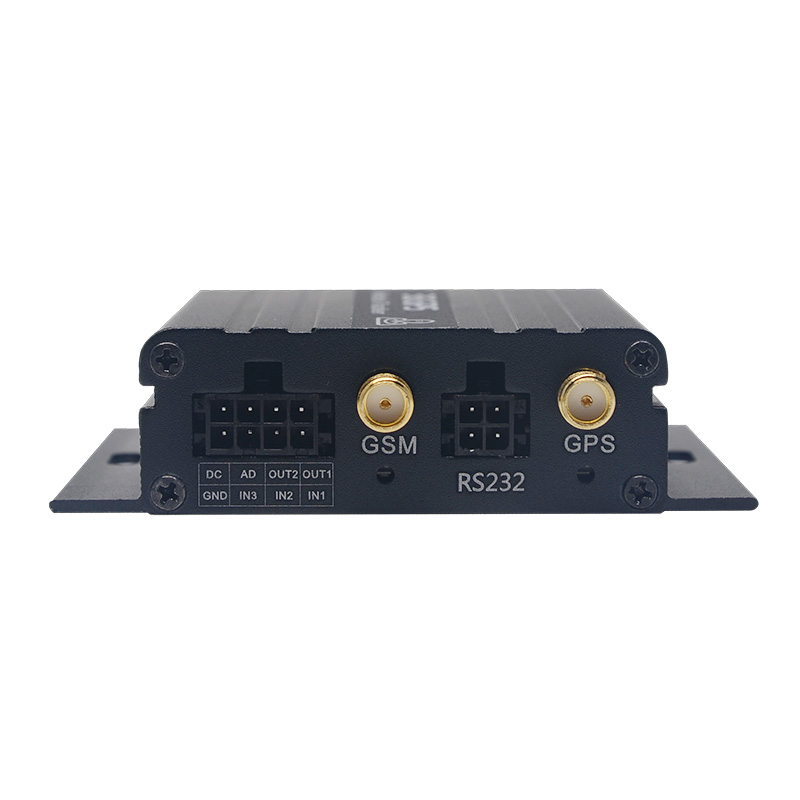

Interfaces
| Digital Inputs | 2 positive trigger inputs
1 negative trigger input |
| Digital Outputs | 2 digital output, open drain, 500 mA max drive current |
| Analog Inputs | 1 analog input (0V-24V) |
| 1-Wire Interface | Support 1-wire temperature sensor/i-button |
| Power Output | 5V outputs for external accessories |
| Communication Ports | 1 RS232 ports for external accessories, such as RFID Reader, Magnetic Card Reader, etc. |
| Cellular Antenna | external antenna |
| GNSS Antenna | external antenna |
| LED Indicators | CEL, GNSS |
Air Interface Protocol
| Transmit Protocol | TCP, UDP, SMS |
| Scheduled Report | Report position and status based on preset time intervals, distance, mileage or a combination of these settings |
| Geo-fences | Geo-fence alarm and parking alarm |
| Low Power Alarm | Alarm when backup battery is low |
| Power On Report | Report when the device is powered on |
| Antenna Disconnect Alarm | Alarm when the external GPS antenna is disconnected |
| Driving Behavior Monitoring | Aggressive driving behavior detection, including acceleration, deceleration, speeding, etc. |
| Remote Control | OTA control of digital outputs |
| FOTA | Support firmware upgrade over the air |

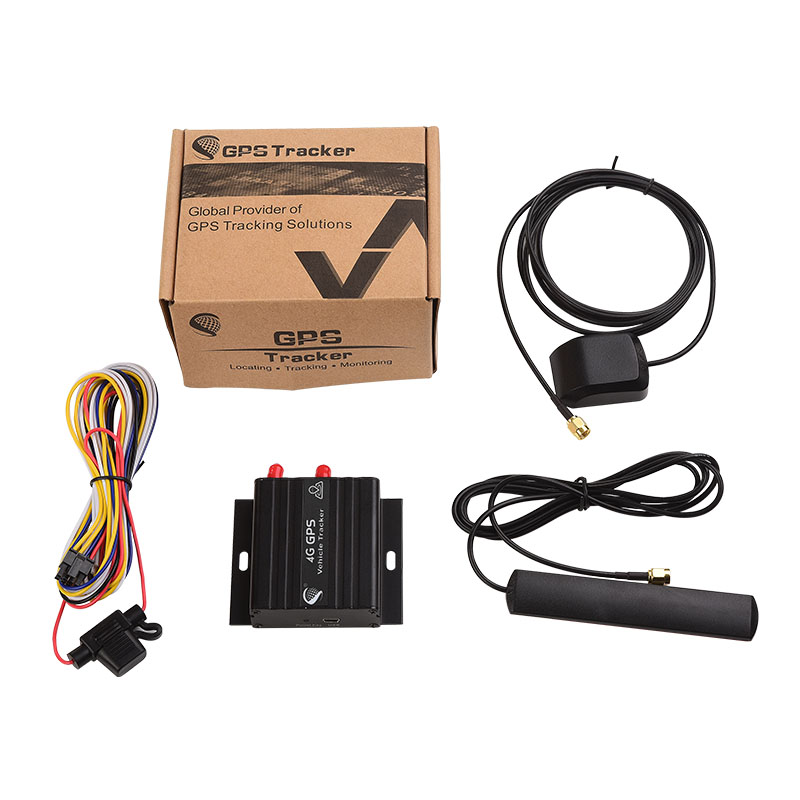

Optional Accessories:
Vehicle Tracker
