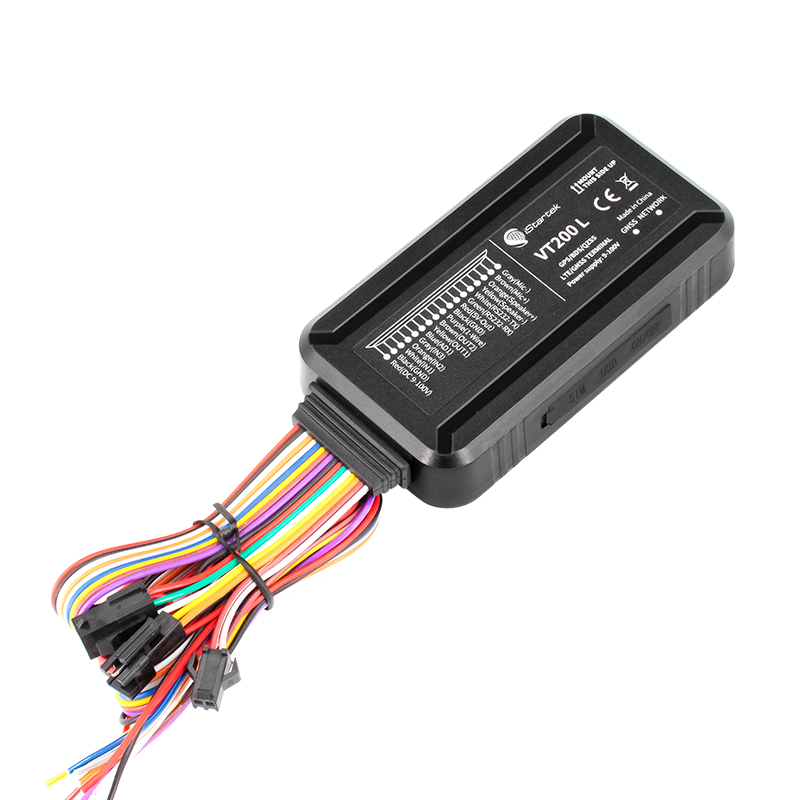

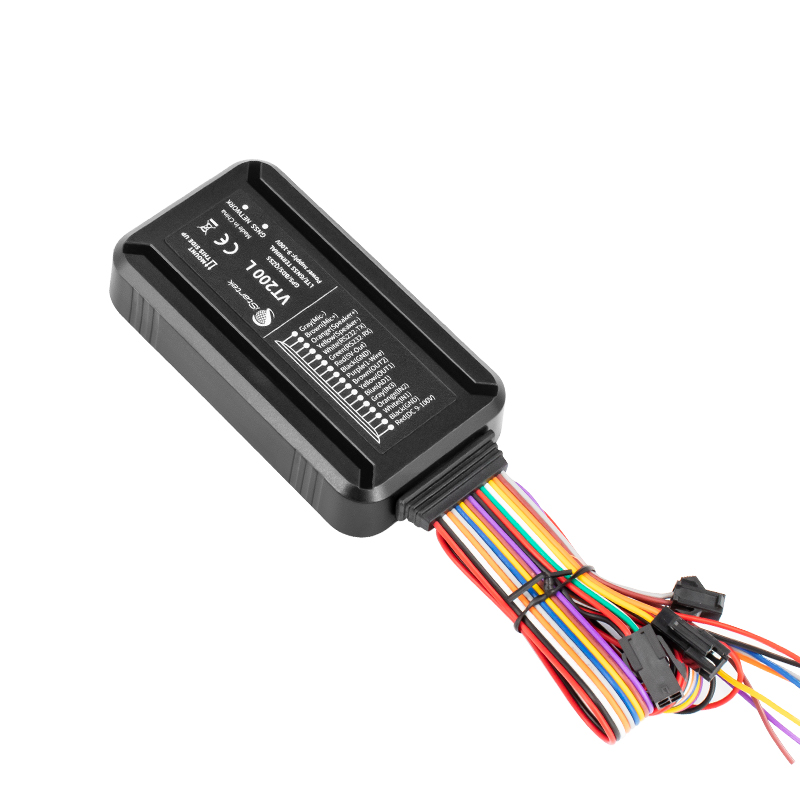

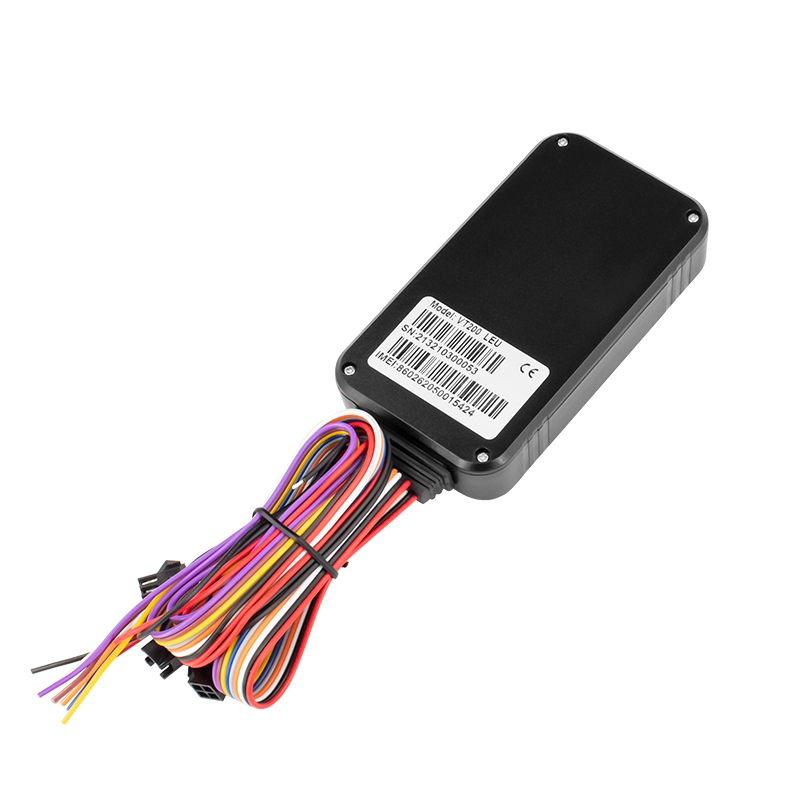

    VT200-L 4G Vehicle GPS Tracker

    real time gps vehicle tracker

    Product Description:

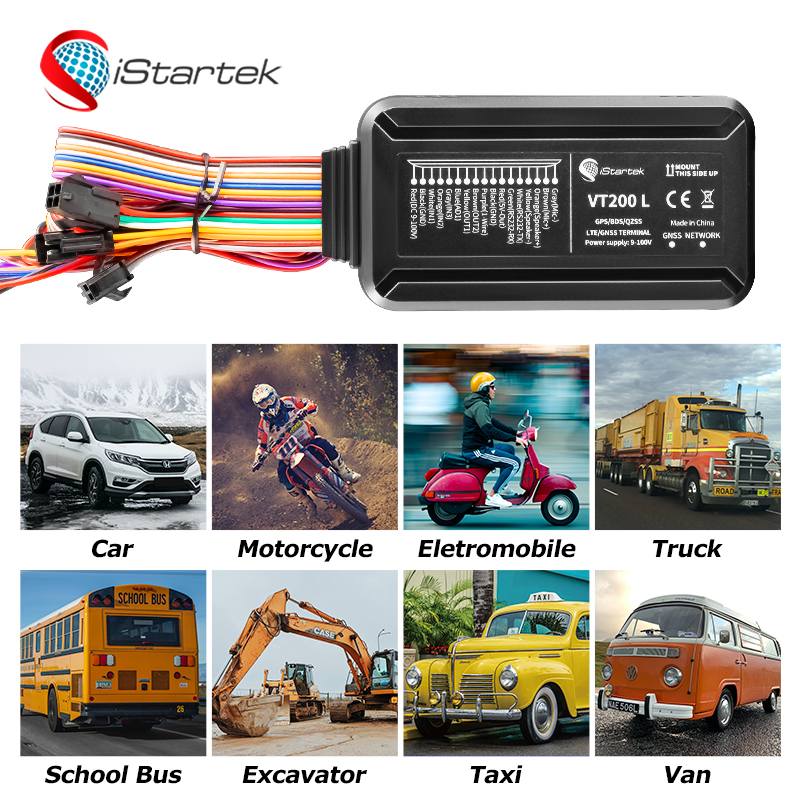

    VT200-L is a 4G based GPS vehicle tracker. With built-in high-precision GPS positioning module reports the vehicle location and vehicle status to the vehicle tracking service platform through the 4G network for real-time vehicle monitoring, anti-theft, and dispatch management. It can be applied to fleet management, public transportation management, school bus management, taxi operation management, vehicle insurance company management, leasing management and private car anti-theft, etc.
    VT200-L has a built-in 128Mb Flash memory. When the device enters blind area, it will automatically save historical positioning data. When the network recover, it will automatically resend historical positioning data to the service platform.
    VT200-L contains an RS232 port, which can be connected to RFID to perform identity recognition and vehicle control for vehicle drivers; It can also be connected to OBD reader to read car ECU data and other RS232 peripherals to achieve corresponding functions.

    Detail:

    Engine Immobilization Can Bus Accurate Fuel Tank LTE Tracker 4G GPS Tracking Device with Temperature monitoring 4G LTE

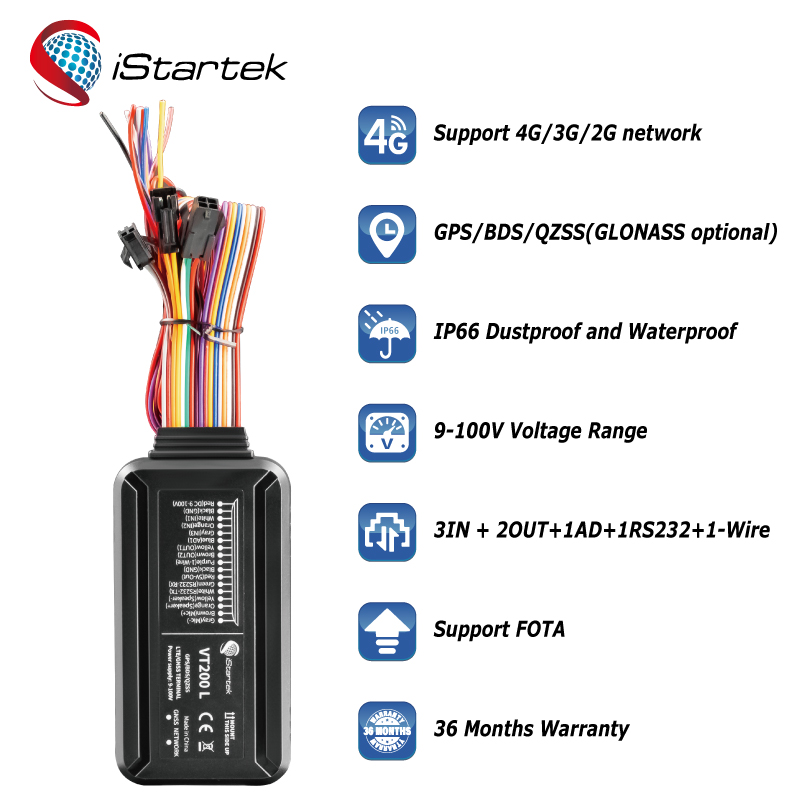

    Support 4G/3G/2G network

    Engine Immobilization Can Bus Accurate Fuel Tank LTE Tracker 4G GPS Tracking Device with Temperature monitoring GPS/BDS/GLONASS/QZSS

    Multiple positioning systems for high-precision real-time positioning

    Engine Immobilization Can Bus Accurate Fuel Tank LTE Tracker 4G GPS Tracking Device with Temperature monitoring IP66

    IP66 Water-resistant ensures stable operation in tough environment

    Engine Immobilization Can Bus Accurate Fuel Tank LTE Tracker 4G GPS Tracking Device with Temperature monitoring 9-100V

    9-100V wide operating voltage applied to all types of vehicles

    Engine Immobilization Can Bus Accurate Fuel Tank LTE Tracker 4G GPS Tracking Device with Temperature monitoring 128 Mb Flash

    Store buffer when the signal is lost to keep a complete tracking route

    Engine Immobilization Can Bus Accurate Fuel Tank LTE Tracker 4G GPS Tracking Device with Temperature monitoring Two-way Audio

    With MIC and loudspeaker for two-way communication

    Engine Immobilization Can Bus Accurate Fuel Tank LTE Tracker 4G GPS Tracking Device with Temperature monitoring Camera

    Take photos and upload to server, support automatic photo upload triggered by events

    Engine Immobilization Can Bus Accurate Fuel Tank LTE Tracker 4G GPS Tracking Device with Temperature monitoring RS232

    RS232 port can be equipped with a Camera, RFID, magnetic card reader or OBD II reader

    Engine Immobilization Can Bus Accurate Fuel Tank LTE Tracker 4G GPS Tracking Device with Temperature monitoring Dual Server IP

    Support uploading location data to two servers simultaneously

    Engine Immobilization Can Bus Accurate Fuel Tank LTE Tracker 4G GPS Tracking Device with Temperature monitoring 1-Wire

    1-Wire® can be equipped with up to 8 temperature sensors or ibuttons

    Engine Immobilization Can Bus Accurate Fuel Tank LTE Tracker 4G GPS Tracking Device with Temperature monitoring Multiple I/O

    3IN + 2OUT+1AD+1RS232+1-Wire+1Speaker+1Microphone, 4IN/2AD configurable

    Engine Immobilization Can Bus Accurate Fuel Tank LTE Tracker 4G GPS Tracking Device with Temperature monitoring Driving Behavior

    Support harsh acceleration alarm, breaking alarm, harsh turning alarm, speeding alarm, drunk driving alarm, fatigue alarm, etc.

    Engine Immobilization Can Bus Accurate Fuel Tank LTE Tracker 4G GPS Tracking Device with Temperature monitoring FOTA

    Quickly and easily upgrading firmware remotely

    Engine Immobilization Can Bus Accurate Fuel Tank LTE Tracker 4G GPS Tracking Device with Temperature monitoring Fuel Steal Alarm

    Support ultrasonic fuel sensor or capacitive fuel sensor with fuel steal alarm

    Specification:

    Specification:

    General Features

    Power Supply 9V-100V
    Dimension 99 x 54 x 19.5mm
    Weight 106g
    Backup Battery 500mAh
    Normal Power Consumption 110mA/h
    Work Time 33 hours in power saving mode and 4hours is normal mode
    Operation Temperature -20° to 75° C
    Humidity 5% to 95% Non-condensing
    Memory 128M bit
    Waterproof Level IP66
    Sensor 3D Acceleration Sensor
    Positioning GPS +BD2





    LTE /GSM Specifications

    Frequency VT200-L CN(Quectel EC200ACN CAT4

    LTE-FDD: B1/B3/B5/B8

    LTE-TDD: B34/B38/B39/B40/B41

    WCDMA:B1//B5/B8



    VT200-L EU (Quectel EC200UEU CAT1

    LTE-FDD: B1/B3/B5/B7/B8/B20/B28

    LTE-TDD: B38/B40/B41

    GSM: 850/900/1800/1900MHz



    VT200-L AU (Quectel EC200AAU CAT4

    LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66

    LTE-TDD: B40

    WCDMA:B1/B2/B4/B5/B8

    GSM: 850/900/1800/1900MHz

    4G LTE Module EC200S(Cat-1)/EC200T(Cat-4),4G LTE,Quectel
    Data Transmission







    LTE FDD: Max.10Mbps (DL)/Max.5Mbps (UL)

    LTE TDD: Max.8.96Mbps (DL)/Max.3.1Mbps (UL)

    WCDMA: Max.384Kbps (DL)/Max.384Kbps (UL)

    GPRS: Max.107Kbps (DL)/Max.85Kbps (UL)

    GSM Data Transmission Multi-slot class 12



    GNSS Specifications

    Sensitivity Acquisition -149dBm

    Tracking -167dBm

    Reacquisition -162dBm

    Position Accuracy Autonomous: < 2.5m CEP
    Velocity Accuracy Without Aid: <0.1m/s
    Channel 33(Tracking)/ 99 (Acquisition)
    TTFF (Open Sky) Cold Start: <26s

    Warm Start: <15s

    Hot Start: <1s

    Reacquisition Time <1s



    Interfaces

    Digital Inputs 2 positive trigger inputs(All 3 inputs can be configured as high and low trigger modes, AD1 can be configured as a high-level trigger input port), 1 negative trigger input
    Digital Outputs 2 digital output, open drain, 500 mA max drive current
    Analog Inputs 1 analog input (0V-36V), input3 can be configured as AD2(0-6.6V)
    1-Wire Interface Support 1-wire temperature sensor/i-button
    Power Output 5V outputs for external accessories
    Communication Ports 1 RS232 ports for external accessories, such as RFID reader, magnetic card reader etc.
    Cellular Antenna internal antenna
    GNSS Antenna internal antenna
    LED Indicators CEL, GNSS
    Microphone External MIC
    Speaker External Speaker





    Air Interface Protocol

    Transmit Protocol TCP, UDP, SMS
    Scheduled Report Report position and status based on preset time intervals, distance, mileage or a combination of these settings
    Geo-fences Geo-fence alarm and parking alarm
    Low Power Alarm Alarm when backup battery is low
    Power On Report Report when the device is powered on
    Driving Behavior Monitoring Aggressive driving behavior detection, including acceleration, deceleration, speeding etc.
    Fuel Monitoring Oil steal alarm, low oil alarm
    Temperature Monitoring High temperature alarm, low temperature alarm
    Trailer Alarm Alarm after the vehicle parking was towed away
    Idling alarm Stop without flameout alarm
    Remote Control OTA control of digital outputs
    FOTA Support firmware upgrade over the air
    OBD II Reader Read engine Rotating speed, water temperature, etc.
    Camera Developing
    RS232 RX green line, TX white line
    Protocol iStartek new protocol
