4G Dash Cam
Product Description:The 4G Dash Cam features highly integrated functionality, including a built-in GPS antenna, 4G antenna, a front-facing 1080P/2K camera, and two external expansion cameras. Equipped with built-in ADAS, DMS, and BSD algorithms, it utilizes a large ultra-wide-angle camera for DMS and OMS functions, enabling in-vehicle monitoring, behavioral driving analysis, and local facial recognition comparison.
Detail:
 |
180° Rotatable Camera |  |
2K Front Camera | |||
 |
ADAS+DMS+BSD Running Simultaneously |  |
2G+3G+4G,CAT4 High Speed Working |
|||
 |
Max 3-Channel 1080P Video |  |
Live Video + Intercom | |||
 |
RS232 Interface, Support Custom Expansion Functions |  |
Flexible external ADAS or DMS camera | |||
 |
Face Recognition AI |  |
Build in 5F Super Capacitor |
|||
 |
Remote OTA & TF-Card Firmware Upgrade |
 |
Emergency Alarm | |||
 |
Max 512GB TF Card |  |
G-Sensor for Collision & Harsh Driving Alert |
Features:
The product features highly integrated functionality, including a built-in GPS antenna, 4G antenna, a front-facing 1080P/2K camera, and two external expansion cameras.
Equipped with built-in ADAS, DMS, and BSD algorithms, it utilizes a large ultra-wide-angle camera for DMS and OMS functions, enabling in-vehicle monitoring, behavioral driving analysis, and local facial recognition comparison.
Supports features such as real-time video playback, historical video playback, emergency alerts, and TTS text message delivery;
Supports the ADAS + DMS (face recognition) + BSD algorithm mode with customizable channel algorithm functions
Specification:
Function Introduction
| Function | Description |
| Position Function | Real-time GPS location tracking |
| Vehicle position report | |
| Historical route playback | |
| Recorder | Local video recording |
| Remote video viewing | |
| Alarm | Overspeed warning |
| Fatigue driving detection | |
| Driver distraction alert | |
| Emergency SOS alarm | |
| Parameters Query | Device status query |
| Remote parameter configuration | |
| Upgrade | Remote firmware upgrade |
| Multimedia | Photo capture |
| Video upload | |
| Video playback | |
| Audio & Video | Real-time video streaming |
| Remote video download | |
| Platform intercom | |
| AI Function | ADAS detection |
| DMS driver monitoring | |
| AI alarm upload |
| Item | Specification |
| CPU | 32-bit RISC CPU 1.0 GHz，1T NPU |
| RAM | External 4GB DDR3 |
| Flash | 8GB EMMC |
| Operating System | Linux |
| Network | 4G LTE |
| Wi-Fi | Wireless 802.11b/g/n 2.4GHz (with built-in antenna) |
| GPS | Built-in GPS |
| Power Supply | 12V-36V |
| Working Temperature | -20°C to +70°C |
| Humidity | 10% to 90% |
| Net Weight | 205g |

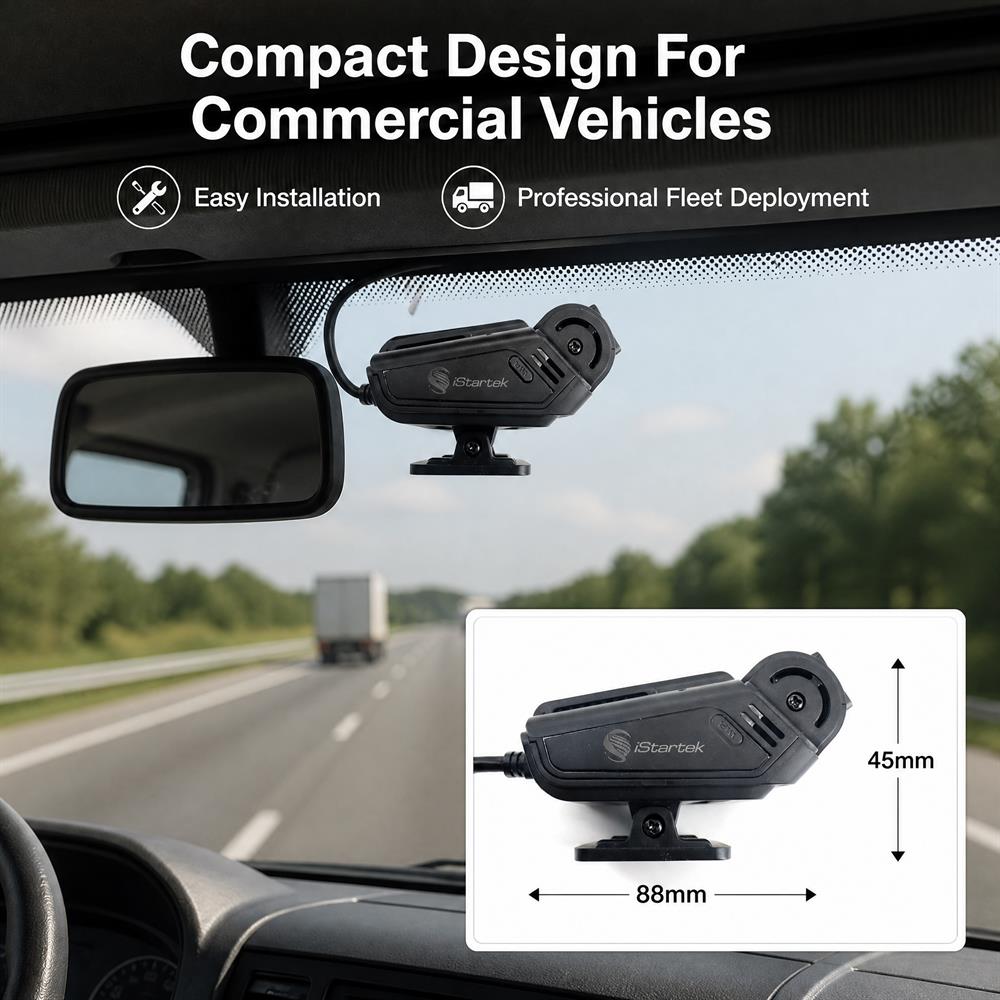

| External Dimensions | 95*80*45mm |
| Platform Integration | JT/T808-2013, JT/T808-2019 |
| JT/T1076-2016, JT/T1078-2016 |
| Item | Specification |
| Video Format | H.264 |
| Audio Format | AAC/G.711A Compression Format |
| Built-in Speaker | Support |
| Built-in MIC | Support |
| Item | Specification |
| Sensor Type | GC4023 |
| Resolution | 2K HD, 2560×1440 |
| Lens | Wide Angle Lens |
| FOV | D=123° H=102° V=53° |
| Frame Rate | 25 |
| Item | Specification |
| Operating System | Linux |
| Power Supply | 12-36V |
| G-Sensor | Support |
| Storage | TF Card, Maximum support: 512 GB |
| SIM Card | Nano SIM |

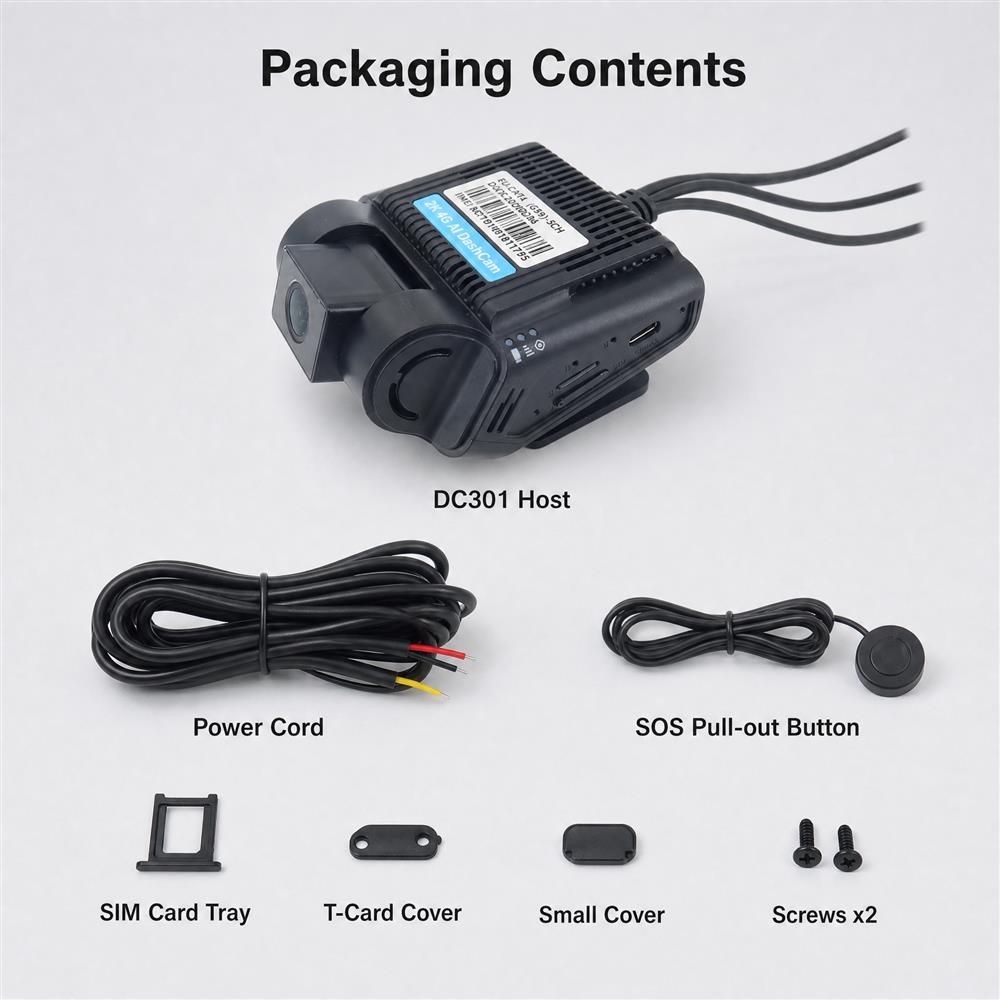

Optional Accessories:
