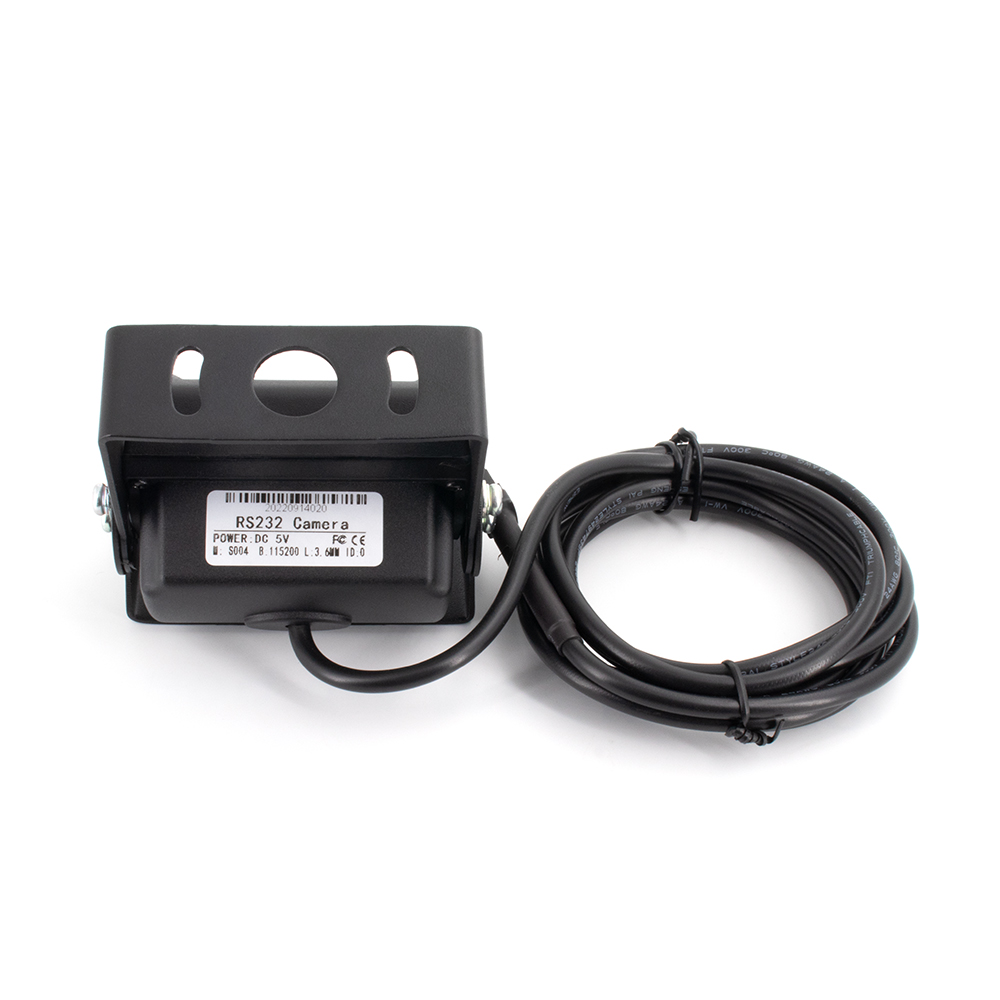

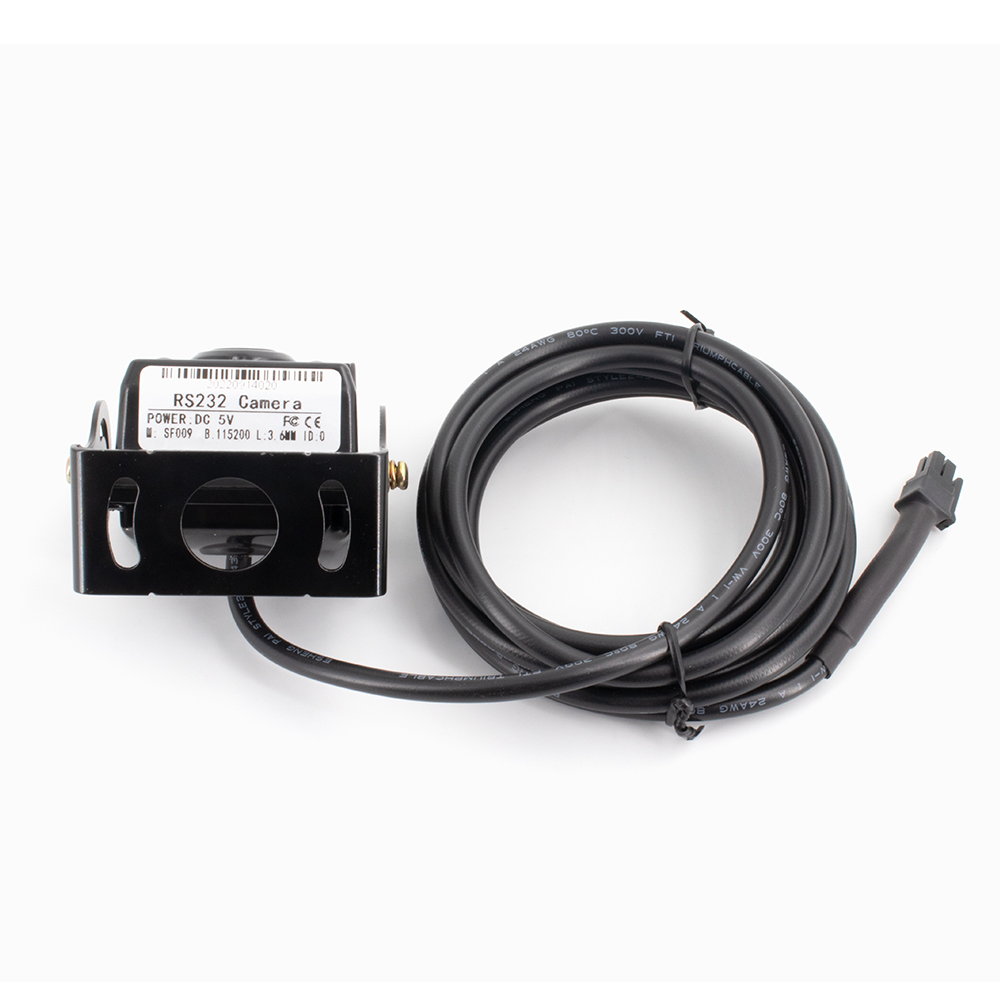

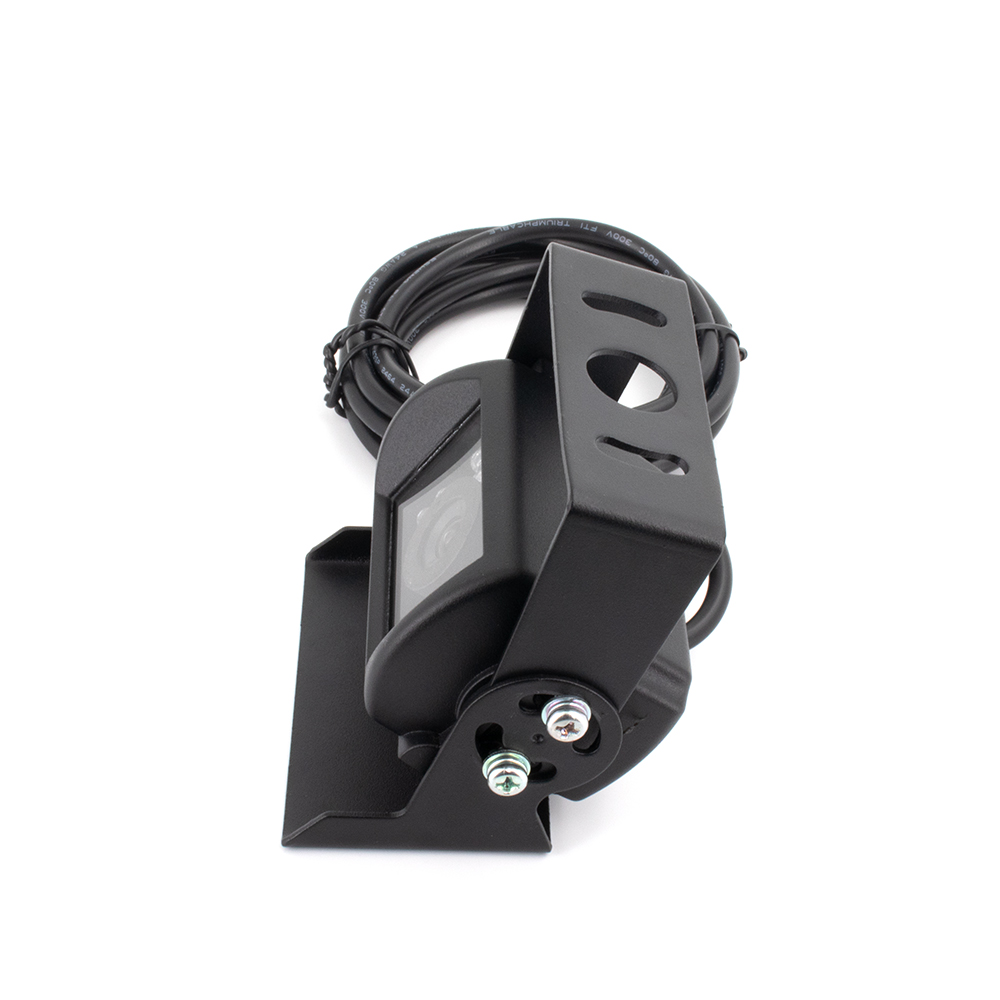

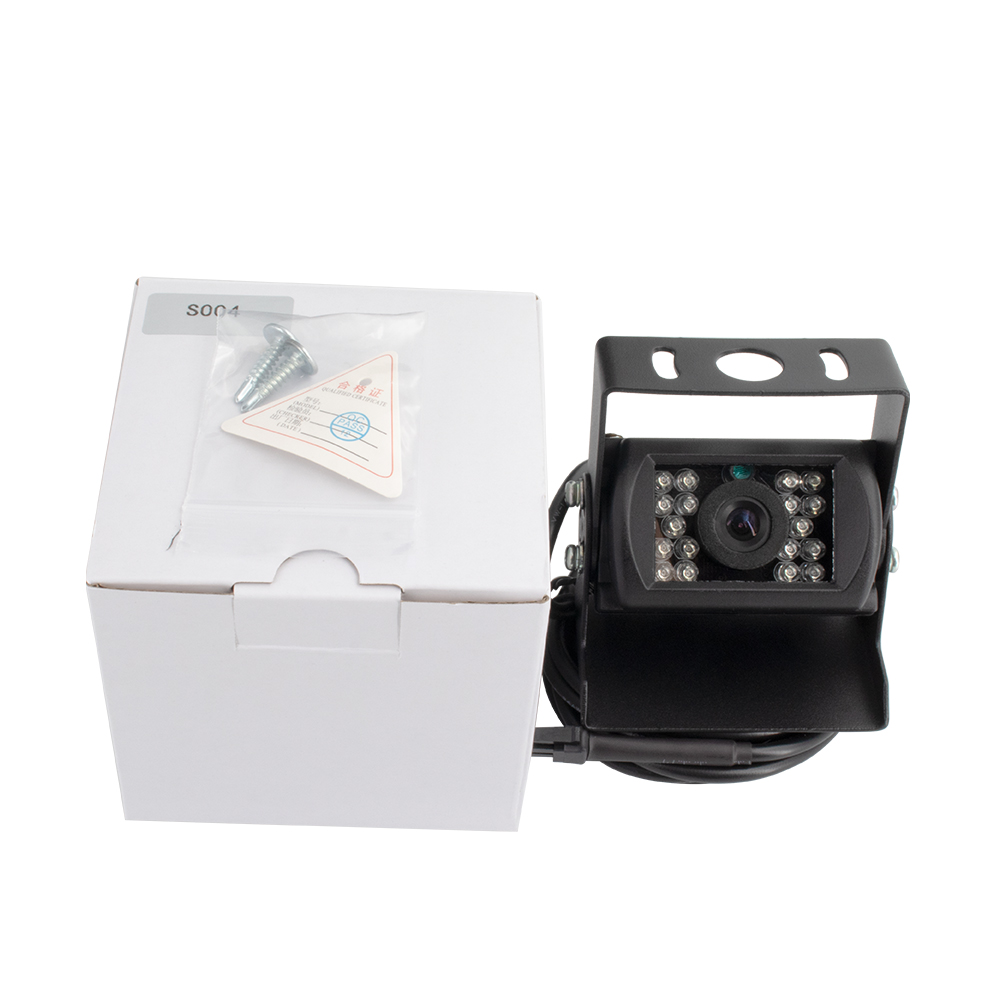

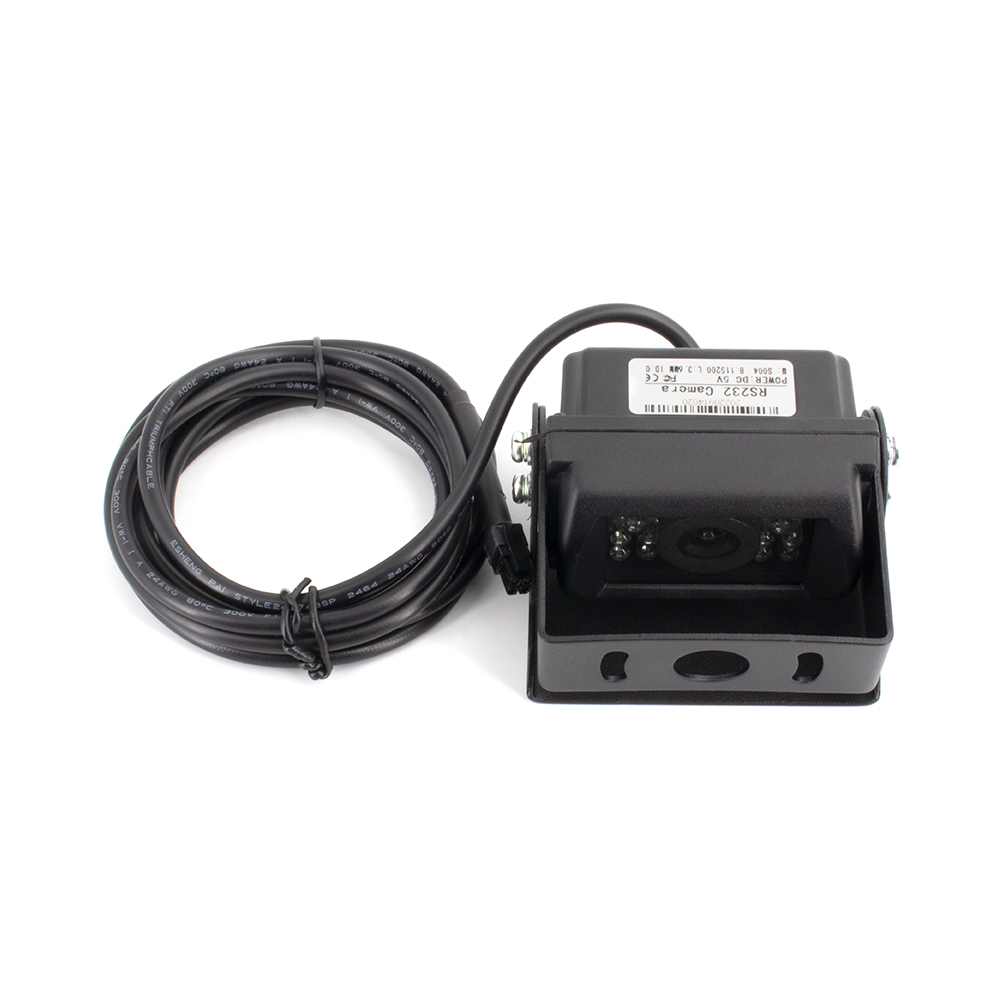

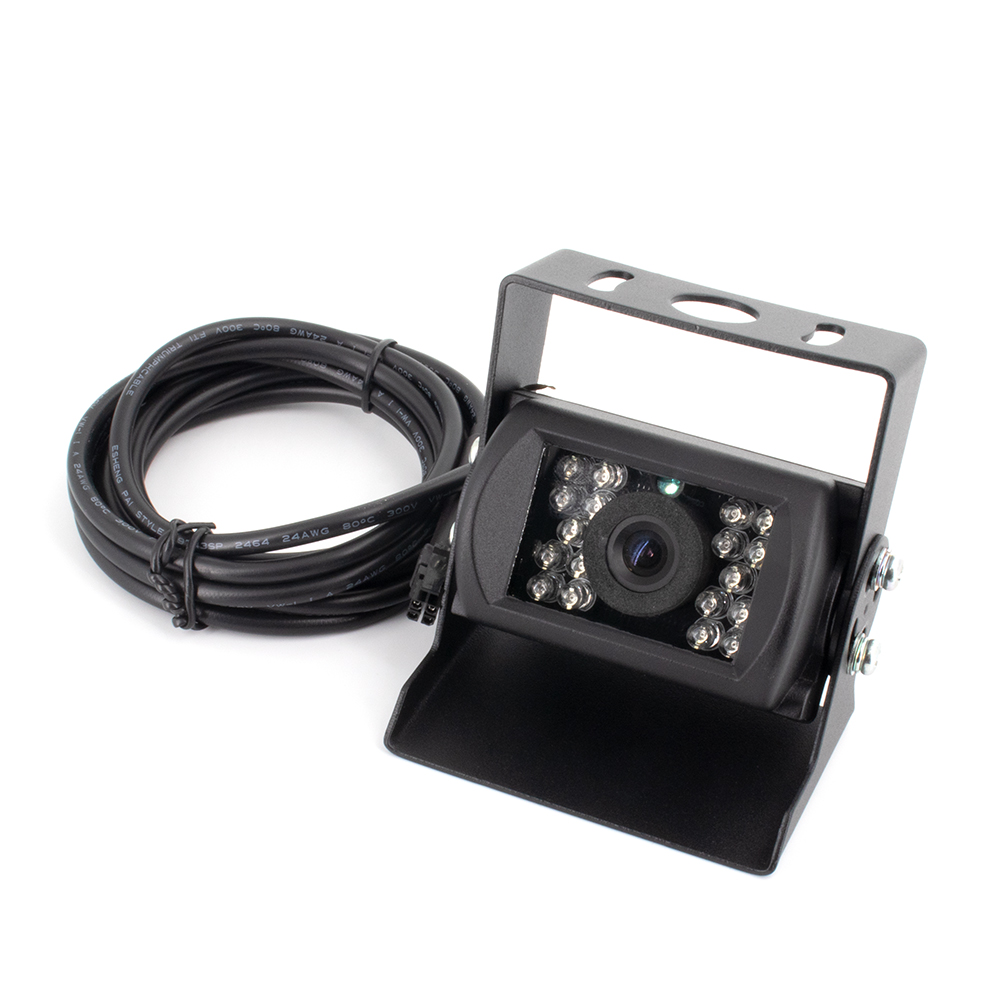

    S004 GPS Tracker with Camera

    GPS Tracker with Camera

    Product Description:

    The iStartek serial camera is a 300,000-pixel industrial-grade image acquisition and processing device. Connected with iStartek GPS Tracker, it integrates image acquisition, shooting control, infrared light, data compression, and serial transmission. Its built-in high-performance digital signal processing chip realizes high-ratio compression of the original image. Product image output in standard JPG format, which can be easily compatible with various image processing software; The additional infrared light can make the product image clearly under various lighting conditions.

    Detail:

    Product Desciption:

    The iStartek serial camera is a 300,000-pixel industrial-grade image acquisition and processing device. Connected with iStartek GPS Tracker, it integrates image acquisition, shooting control, infrared light, data compression, and serial transmission. Its built-in high-performance digital signal processing chip realizes high-ratio compression of the original image. Product image output in standard JPG format, which can be easily compatible with various image processing software; The additional infrared light can make the product image clearly under various lighting conditions.

    Specification:

    Item Specification
    Image pixel 300000 pixels OV7725 1/4 CMOS
    Lens 2.8MM infrared IR940(S009:IR650)
    Output format Standard JPG
    LED S002/S004:Φ5mm IR940 12ц Light dispersion 120 degrees,SF009:8pcs
    Working environment S002/S004:-20℃~80℃ , S009:-35℃~80℃
    Humidity 20%~80%
    Serial port rate 115200
    Line length Standard verion 2M(Customizable for bulk order)
    Interface definition RS232 ( TX ,RX,GND ,5V)
    Operating Voltage 5V
    Working current Less than 80mA (When the infrared light is on, S002:170mA,S004/S009:180mA)
    Minimum illumination 1 lux
    white balance Automatic
    Lens S002/S004:3.6mm ,S009:2.8mm
    Wxposure Automatic
    Resolution 640*480 ,320*240 ,160*120
    Camera angle S002/S004:90°,S009:120°
    Night vision on illumination 5 lux
    Night view image black and white image
    Night vision distance S002:2~3 meters,S004:3~5 meters,S009:1~2 meters
    Working environment S002:Indoor (not waterproof),S004/S009:Indoor or outdoor (IP67 waterproof)
