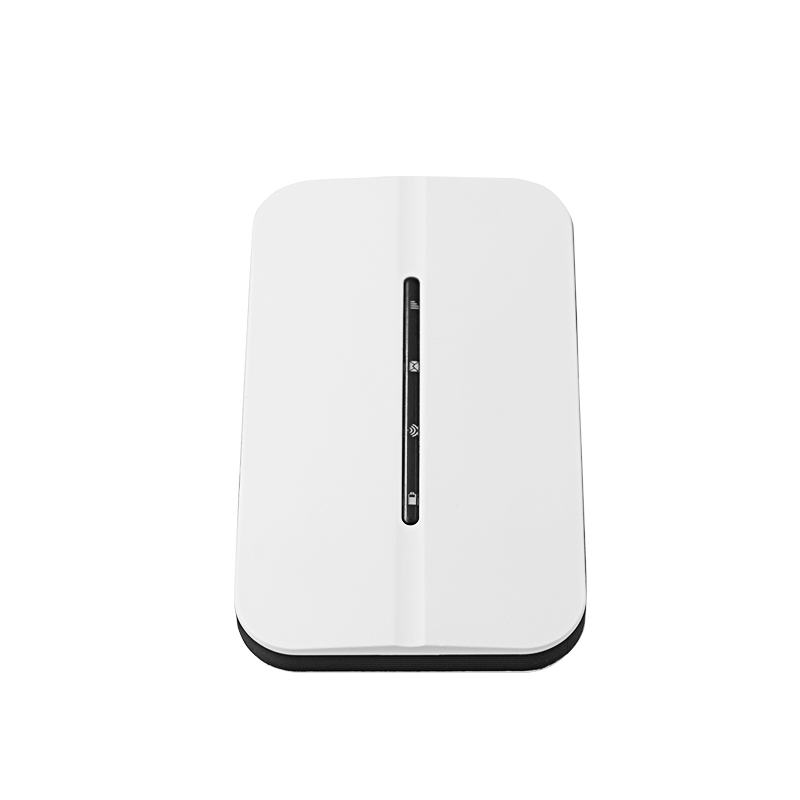

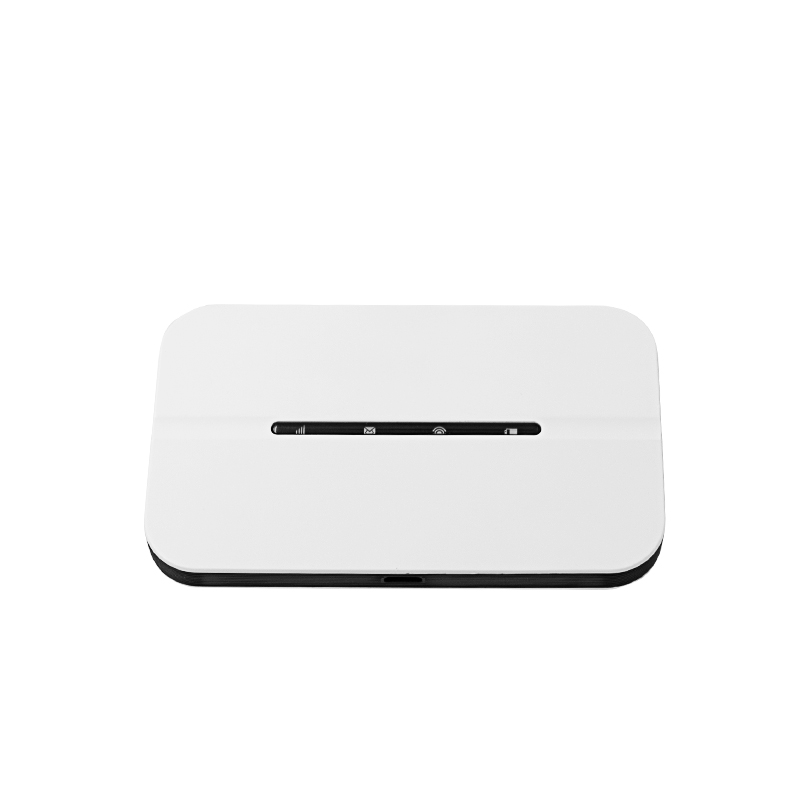

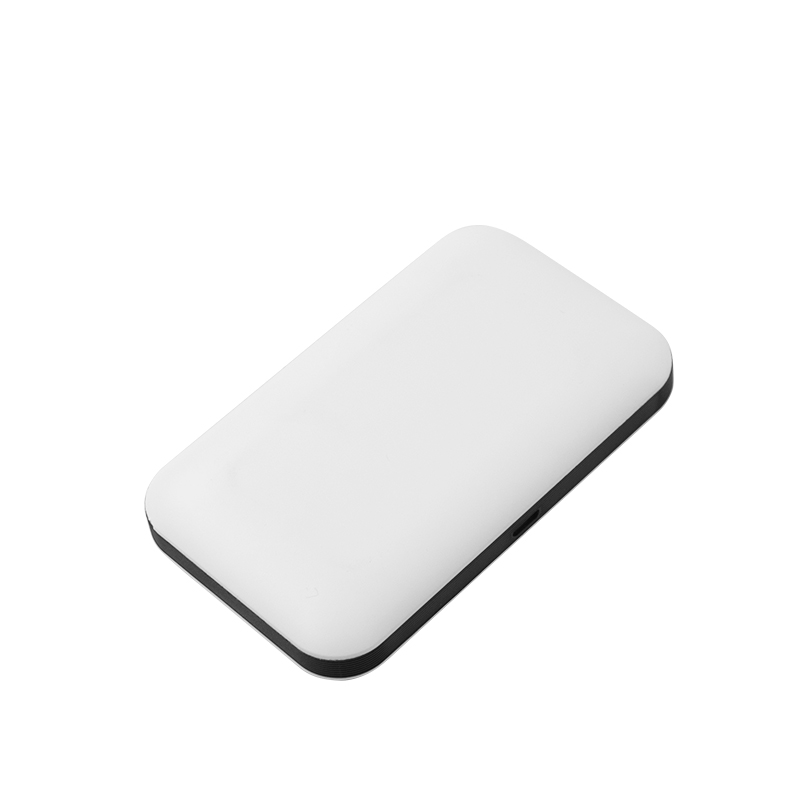

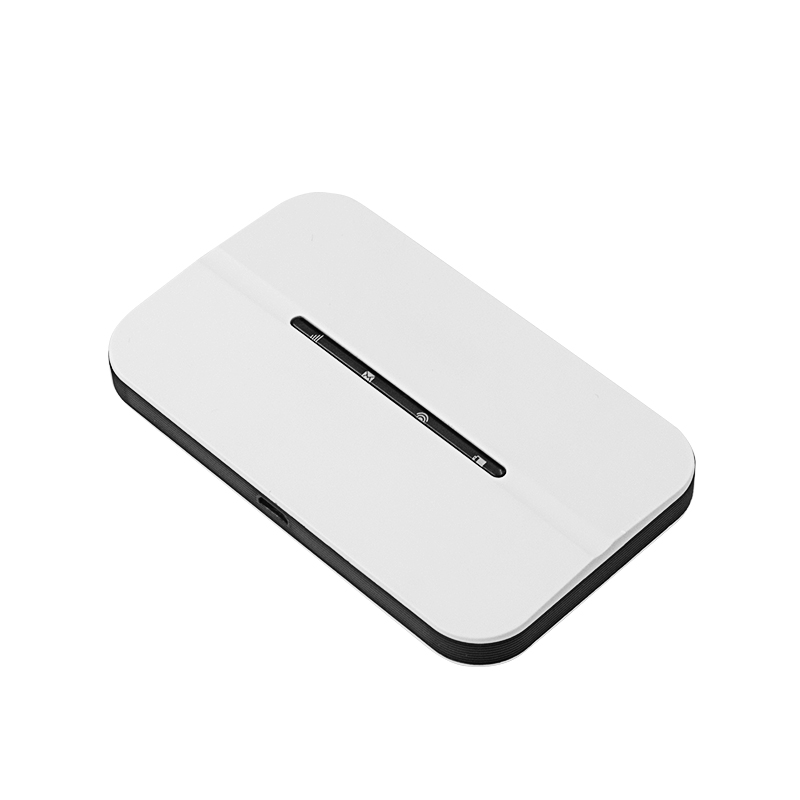

    MF21 4G Portable Router

    4G Portable Router

    Product Description:

    MF21 4G Portable Router is a new 4G mobile hotspot which could achieve high speed 4G connection.
    MF21 4G Portable Router can provide superior wireless access performance and comprehensive routing capabilities to bring wireless broadband data and voice services to end-users. It converts high-speed TDD/FDD signals to Wi-Fi signals on the local area network (LAN). Wireless and wired devices, including mobile phones, laptops, tablets, and other smart devices, can access the device simultaneously.


    1. 4G Pocket Router with Compact Design
    2. Inbuilt 1800mAh Rechargeable Battery
    3. Up to 8 Hours Working Time
    4. Support IPV4/IPV6
    5. Support 4G Bands Lock
    6. Support FOTA
    7. WPS
    8. LTE 1T2R, DL MIMO 2*2
    9. Support 802.11b/g/n, 1T1R
    10. 4G Bands Customizable
    11. DL150Mbps, UL 50Mbps
    12. Maximum Access 8 Devices
    13. Support WPA/WPA2 WIFI Encryption
    14. Web Management System



    Basic Specifications

    USIM Slot 1.8V/3.0V USIM 2FF
    CPU ZX297520V3E
    Wi-Fi chipset SV6158
    Memory ROM/RAM: 1Gb NAND Flash/512Mb RAM
    USIM Slot 1.8V/3.0V USIM 3FF
    USB Port Micro USB 2.0×1 for Charge
    Power Button Hold on 3s to power on/off

    Short press to wake up /Light the LED

    Reset Button Tactile button. Long press over 10s to restore the factory settings
    LED Indicators Power LED×2(Red & Blue) WLAN LED×1(Blue)

    SMS LED×1((Blue)

    LTE Connection Status LED×2(Red/Blue)

    Battery 1800mAh/2100mAh(removable)
    Dimensions 100mm (H) x 60mm (W) x 14mm (D)
    Weight About 100g

    4G/3G/2G Technical Specifications

    Wireless Access Technology TD-LTE/FDD/WCDMA
    3GPP/3GPP2 protocol LTE FDD/TDD Rel 9 CAT4
    Bands MF21-E(Europe & Africa &Asia) FDD:B1/B2/B3/B5/B7/B8/B20/B28A/B28B

    TDD: B38/B40/B41(120M)




    FDD: B1/B2/B3/B4/B5/B7/B8/B28A/B28B/B66

    TDD: B38/B40/B41(120M)

    WCDMA: B1/B2/B4/B5/B8

    Data Rate LTE FDD: Max 150Mbps(DL)/ Max 50Mbps(UL); LTE TDD: Max 130Mbps(DL)/ Min 35Mbps(UL);

    WCDMA: Max 21Mbps(DL)/ Max 5.76Mbps(UL);

    Receive Sensitivity Compliance with 3GPP standard
    MAX Output Power LTE FDD: 23dBm±2dB;

    LTE TDD: 23dBm±2dB;

    WCDMA: 24dBm+1dB/-3dB;

    Wireless MIMO technology LTE 1T2R, DL MIMO 2*2
    Antenna Type Internal Antenna
    Antenna Gain 4~5dBi


    WiFi Specifications

    Standard IEEE 802.11b/g/n
    Channel Bandwidth 20MHz,40MHz
    Frequency 2.4G
    TXRX 1T1R
    Peak Rate 802.11b: 11Mbps

    802.11g: 54Mbps

    802.11n: 150Mbps

    Modulation DSSS/CCK,OFDM
    Receive Sensitivity -82dBm in 802.11b

    -72dBm in 802.11g

    -62dBm in 802.11n

    MAX Output Power 17dBm in 802.11b

    15dBm in 802.11g

    14dBm in 802.11n

    Antenna Type Internal Antenna
    Antenna Gain 3dBi
    Active User Active User




    SW Specifications

    Language Support Default English, other languages can be customized upon request
    IP Protocol IPv4/IPv6
    SIM Management l PIN management

    l SIM lock

    l Support PIN/PUK certification

    Network Connection Management l Automatic network mode setting

    l Manual network mode setting

    l Automatic dial-up connection

    l Manual dial-up connection

    l Automatic re-connection function

    l Support roaming dialing

    l Manual disconnect

    l WEBUI display information

    LTE Scan Mode l Full band scan

    l Frequency lock

    l PCI lock

    WLAN l Configure network name(SSID), password

    l Support multi SSID

    l Wi-Fi basic settings

    l Wi-Fi security settings

    l WPS setting

    l Support AP/Station mode

    l Wi-Fi QR code

    l Wi-Fi coverage settings

    l Wi-Fi black and white list function

    SMS l Send, receive, read, edit, delete message

    l Message full processing

    l Concurrency with data services

    l Show the number of stored messages

    l Message status report support

    Firewall l IP/MAC/URL Filter

    l UPnP settings

    l DMZ settings

    Statistics l LTE status

    l Connection time

    l System up time

    l Device status

    l DHCP client list

    l Wi-Fi station list

    l LTE status

    l Firewall Status

    Maintenance l Date & Time setting

    l DHCP settings

    l Reboot

    l Restore factory settings

    l Firmware upgrade locally/OTA (over the air)

    SNTP l SNTP function

    l SNTP supports daylight saving time

    Charge l Shut down charging

    l Power on and charge


    Environmental Specifications

    Operating Temperature -10℃ ~ 50℃
    Storage Temperature -20℃ ~ 60℃
    Operating Humidity 5% ~ 95%
    Standby time 300 hours(LTE connected and WIFI off)
    Working time 6~8 hours
