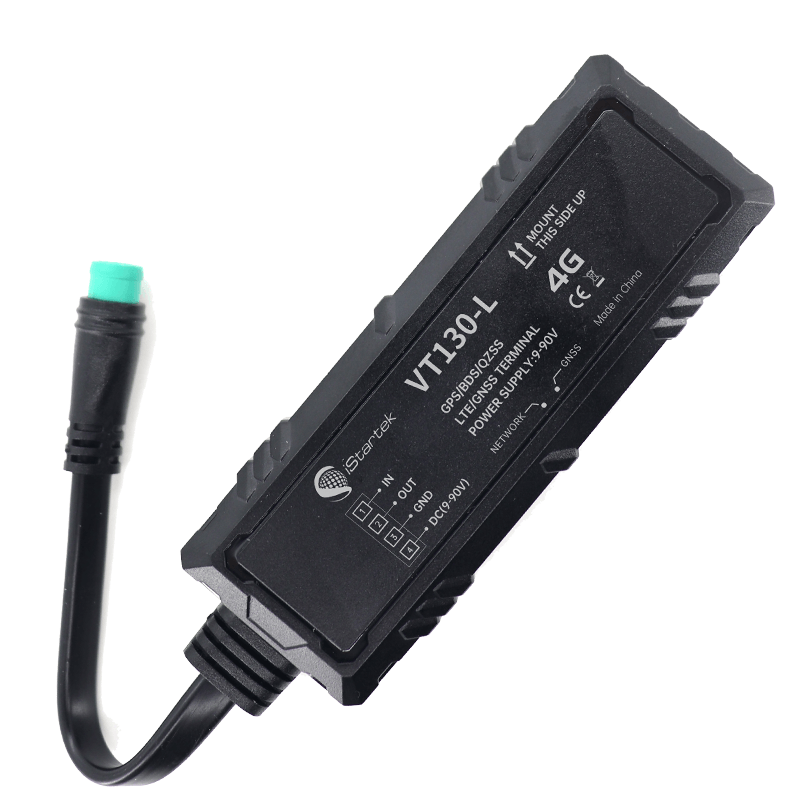

VT130-L 4G Tracking Device GPS

Tracking Device GPS

Product Description:
VT130-L is a 4G GPS vehicle tracker, built-in high-precision GPS positioning module reports the positioning information and vehicle status to the vehicle tracking service platform through the 4G network for real-time monitoring, anti-theft and dispatch management. It can be applied to fleet management, public transport management, school bus management, taxi operation management, vehicle insurance company management, lease management and private car anti-theft etc.

DETAIL FEATURES SPECIFICATION Optional Accessories

Detail:

3. Product Function

GPS+GSM base station dual-mode positioning
Real-time tracking
Track by time interval
Track by distance
Heading change report
Mileage report
External power disconnectionalarm
SMS alarm
Low battery alarm
Engine and door status change alarm
Support dual servers
Geo-fence alarm
Speeding alarm
GPS signal loss alarm
Harsh acceleration alarm
Harsh deceleration alarm
Harsh turning alarm
Impact alarm
Vibration (towing) alarm
Idling alarm
Fatigue driving alarm
16Mb Flash
FOTA upgrade
ACC ON、ACC OFF set time interval upload
Remote fuel/electricitycut off
Buzzer alarm (optional)

Features:

VT130-L is a 4G Tracking Device GPS, built-in high-precision GPS positioning module reports the positioning information.
VT130-L built-in vehicle status to the vehicle tracking service platform through the 4G network for real-time monitoring, anti-theft and dispatch management.
It can be applied to fleet management, public transport management, school bus management, taxi operation management, vehicle insurance company management, lease management and private car anti-theft etc.
GPS+GSM base station dual-mode positioning, Real-time tracking, Track by time interval, Track by distance.

Specification:

Item	Specification
Size	90 x 33.8 x 16.6mm
Weight	About 54g
Input voltage	DC 9 – 90V/1.5A
Waterproof grade	IP66
Inbuilt Battery	120mAh
Battery operating time	30min
Frequency Band	VT130-L EU：(A7670E-LNMV) LTE-FDD：B1/B3/B5/B7/B8/B20/B28 VT130-L SA：(A7670SA-LNMV) LTE-FDD：B1/B2/B3/B4/B5/B7/B8/B28/B66
LED Indicator	Blue indicator1, green indicator1, built-in, transparent external visible
GPS module	BDS/GPS/GLONASS/QZSS
GSM antenna	Built-in FPC
GPS antenna	built-in ceramic antenna（25 * 25 * 4mm）
Flash Memory	16M bit
Sensor	3D acceleration sensor
Switch	External toggle switch
SIM Card	Nano SIM card
Input/Output	1 Digital input (Can be configured as positive/negative trigger by Parameter Editor). Used for ACC detection. 1 Output 1 TYPE C USB
