GPS Tracker Solar Powered

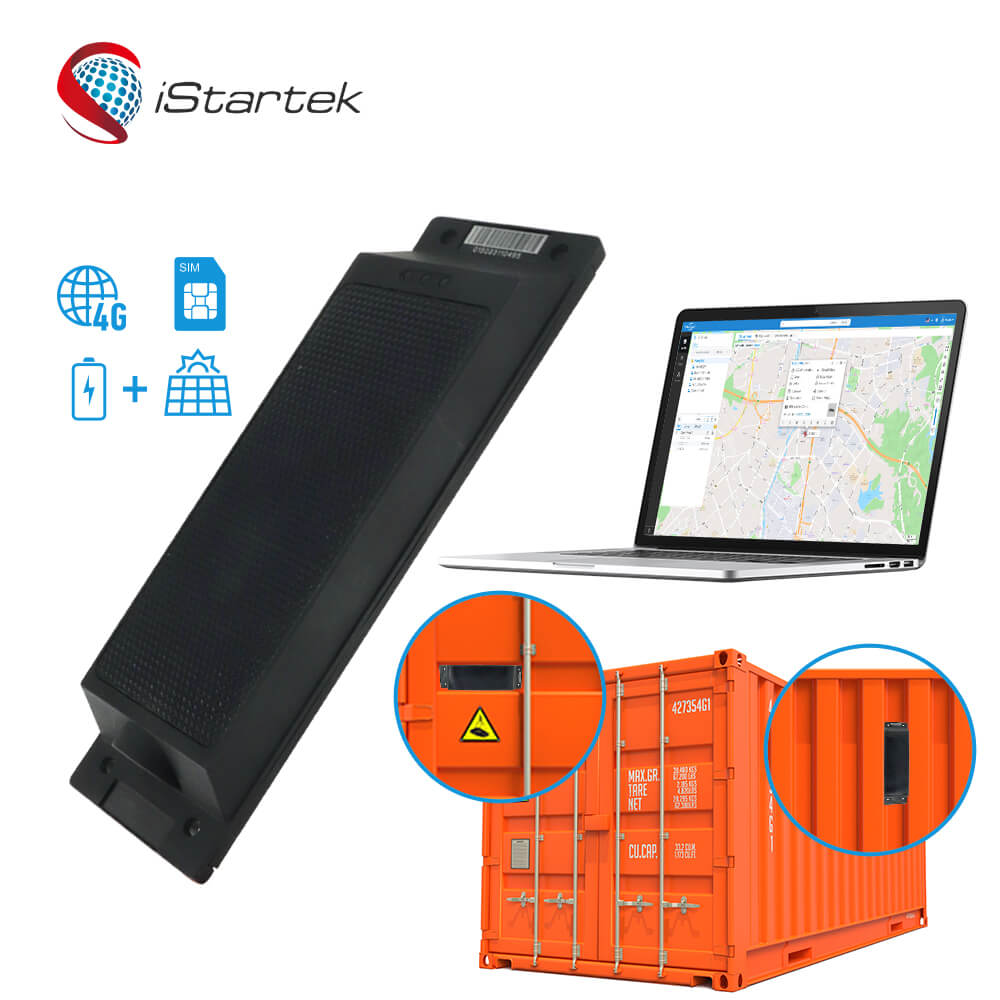

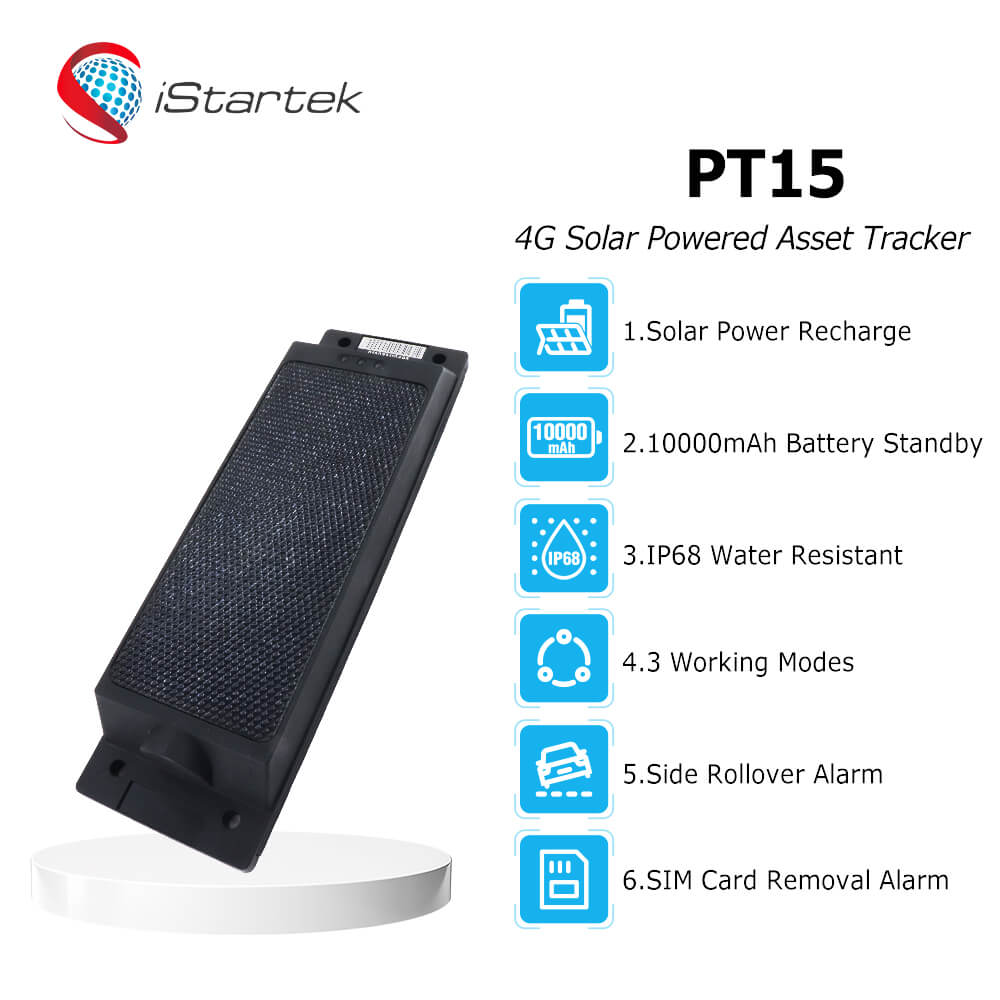

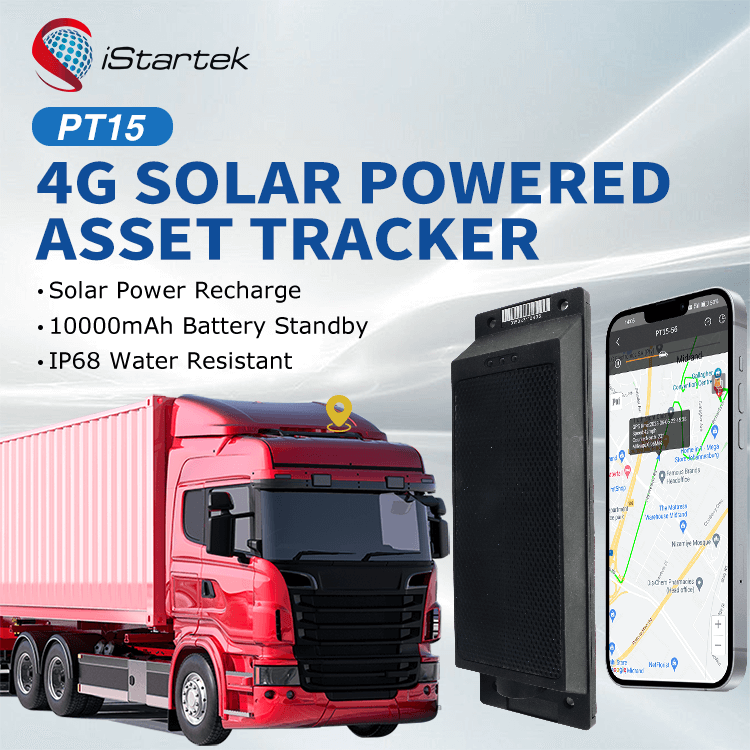

Product Description:PT15 is a 4G wireless GPS Tracker Solar Powered, a high-tech product designed for real-time monitoring of mobile targets such as ships, vehicles, and cargoes. It combines unique low-power technology with IoT communications, satellite positioning, solar energy and other technologies to provide full-process monitoring for the management of mobile targets such as ships, containers, and vehicles.
Detail:
 |
4G Network and 2G Fall Back
Support 4G/2G network. |
 |
Solar Power Recharge
It is equipped with solar charging pane land smart sensors. |
|||
 |
IP68 Water Resistant IP68 rating provides complete protection against dust and water in extreme weather. |
 |
3 Working Modes Switchable
Three operational modes: realtime, clock wakeup, and timing wakeup. |
|||
 |
Side Rollover Alarm It instantly alerts you the moment the vehicle tilts abnormally, enabling a rapid response. |
 |
SIM Card Removal Alarm Get instant alerts the instant the SIM card is unauthorized removed. |
|||
 |
Inbuilt 32M bit Flash Memory
Store buffer when the signal is lost to keep a complete tracking route. |
 |
Support JT808 GPRS Protocol
Support Chinese National Standard GPRS Protocol JT808. |
|||
 |
10000mAh Battery for Longtime Standby
10000mah high capacity li-on battery allowing sufficient power supply.
|
 |
FOTA Upgrade
Quickly and easily upgrading firmware remotely. |
Features:
PT15 is a 4G wireless solar-powered GPS locator, a high-tech product designed for real-time monitoring of mobile targets such as ships, vehicles, and cargoes.
It combines unique low-power technology with IoT communications, satellite positioning, solar energy and other technologies to provide full-process monitoring for the management of mobile targets such as ships, containers, and vehicles.
Specification:
| Item | Specification |
| Dimensions | 222 x 66 x 29mm |
| Weight | 348g |
| Waterproof level | IP68 |
| Input voltage | DC 5V/1A |
| Built-in battery | 10000mAh |
| Average operating current | <30mA/h(MCU, GPS, and GSM are on, and 10 minutes per data) |
| Average sleep current | <30uA/h(MCU sleeps, GPS and GSM are turned off) |
| Operating temperature | -40℃ to 65℃ |
| Operating humidity | 5% to 95% |
| Communication method | TCP, SMS, JT808 |
| Frequency band | PT15 CN(Quectel EG915U-CN cat1):
FDD:B1/B3/B5/B8 TDD:B34/B38/B39/B40/B41 GSM:900/1800 MHZ
PT15 LA(Quectel EG915U-LA cat1): FDD：B2/B3/B4/B5/B7/B8/B28/B66 GSM：B2/B3/B5/B8
PT15 EU(Quectel EG915U-EU cat1): FDD：B1/B3/B5/B7/B8/B20/B28 GSM：B2/ B3/ B5/ B8
PT15 NA(Quectel EG915Q-NA cat1)： FDD: B2/B4/B5/B12/B13/B14/B66 |
| Positioning method | GPS+BDS+LBS |
| GPS module | Zhongkewei |
| GPS sensitivity | Tracking: -162dBm，capture: -160dBm |
| Positioning accuracy | 5-10 meters |
| Flash memory | 32M bit |
| LED light | 3 LED lights indicate charging/GPS/GSM status |
| Antenna | Built-in |
| Sensor | 3D accelerator |
| Slip sensor | Light sensor |
| SIM card | Nano |
