WIFI Modem

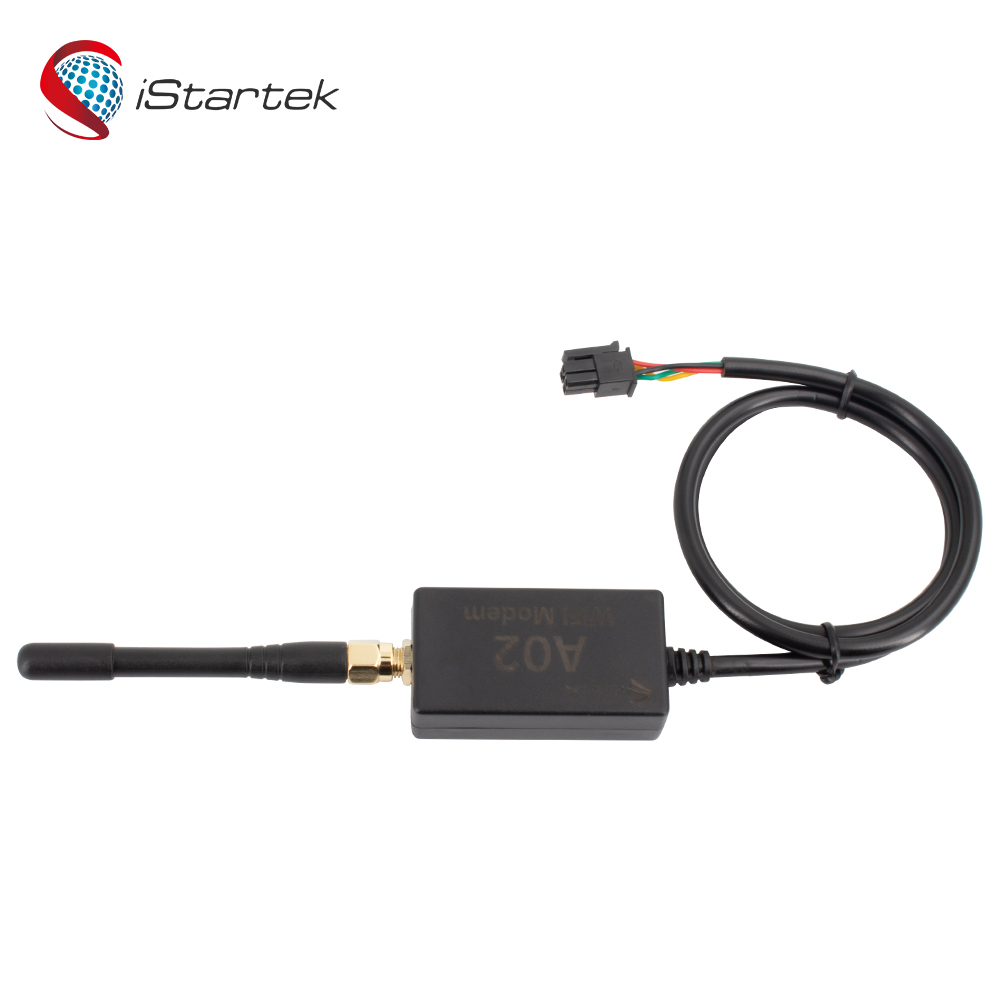

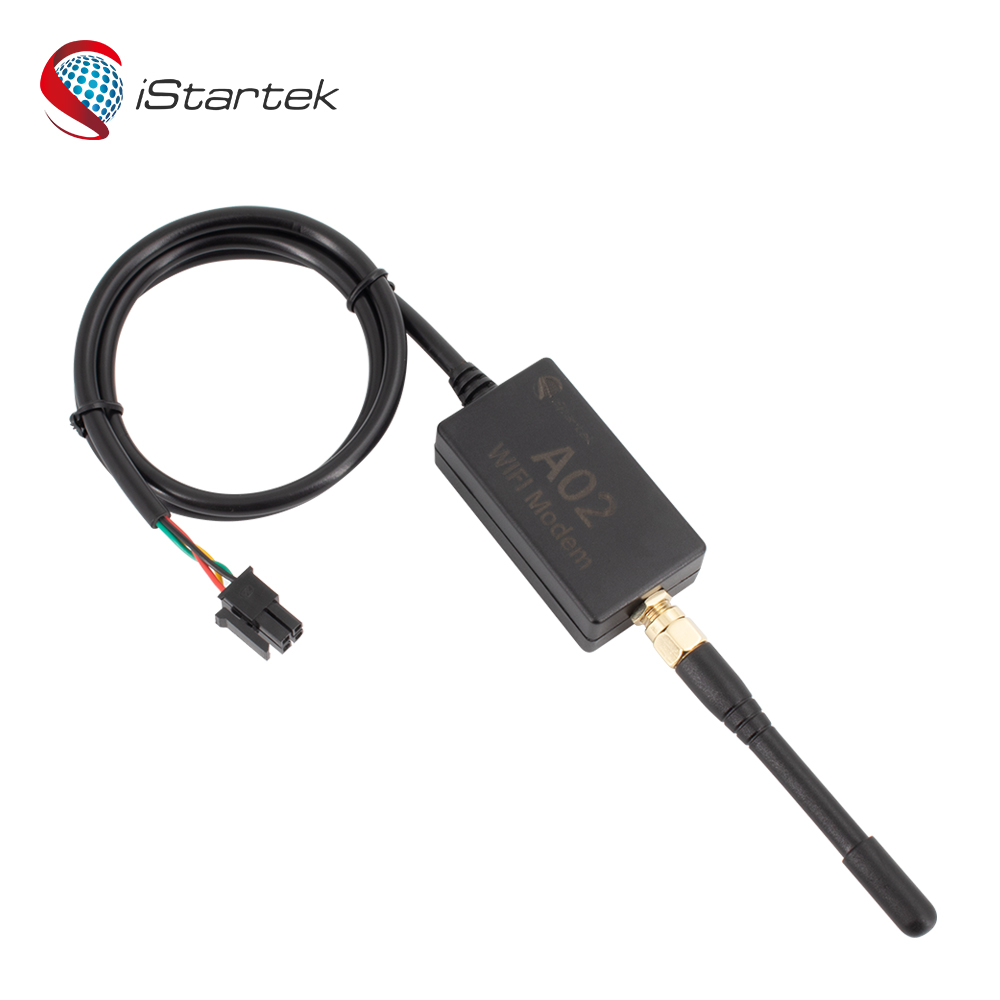

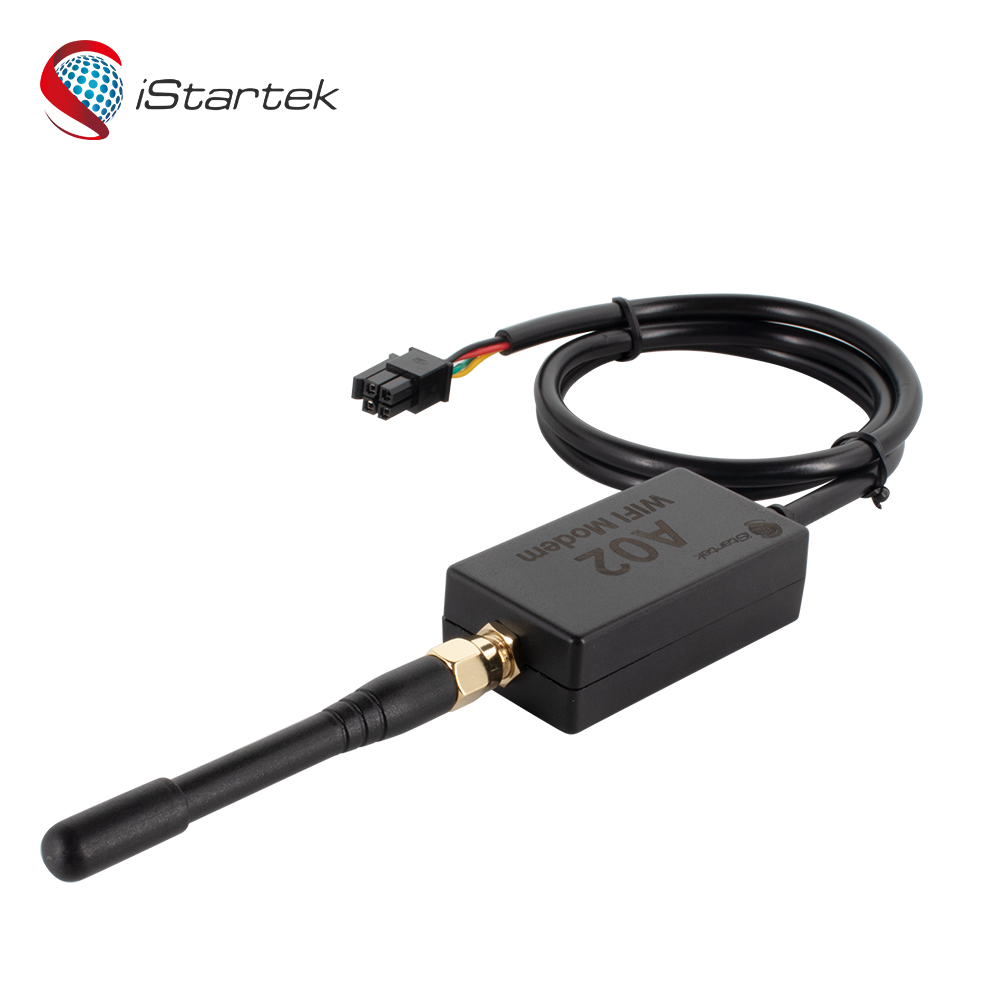

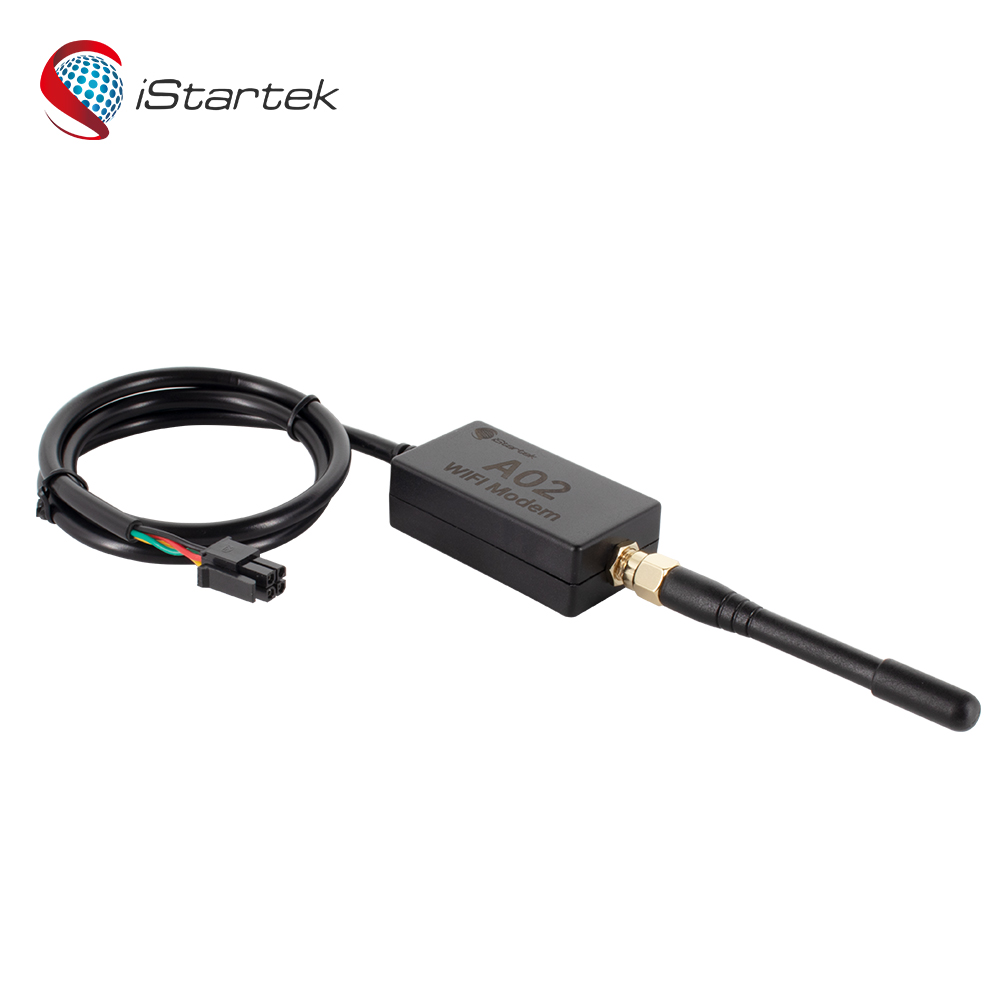

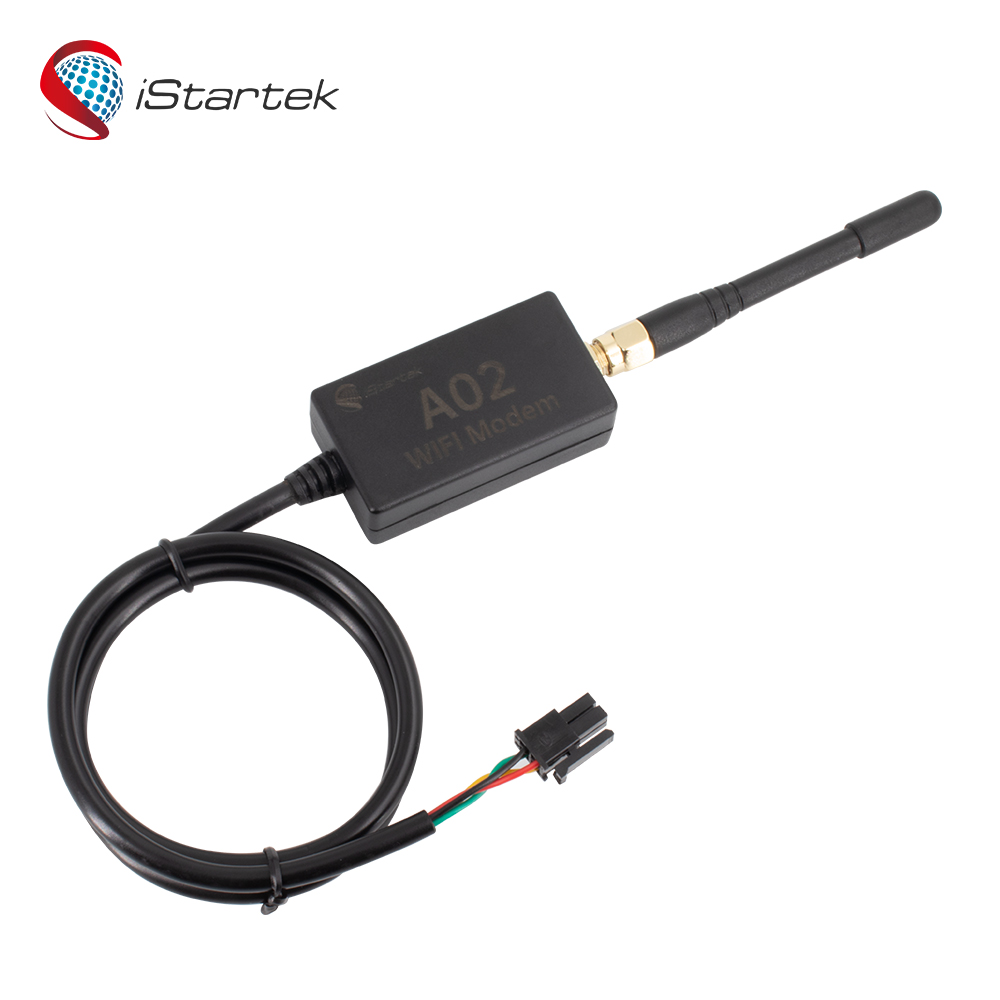

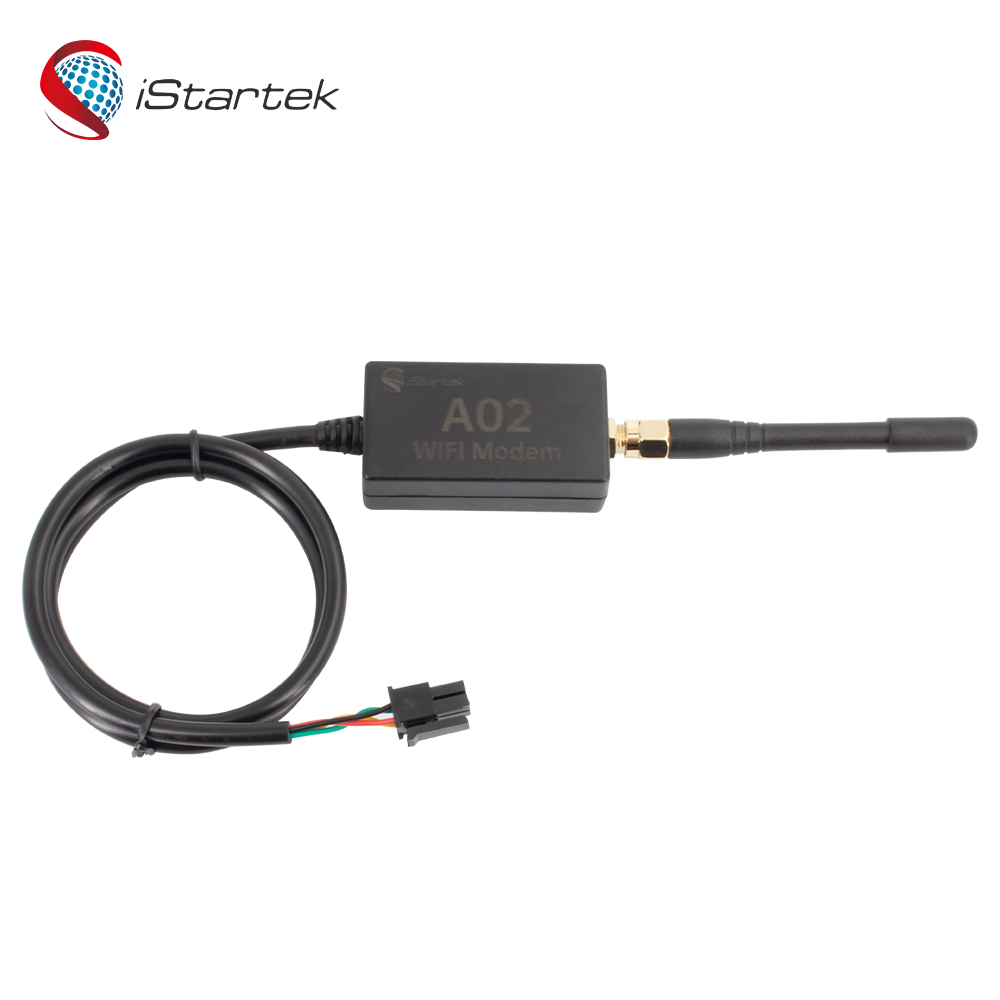

Product Description:A02 is a WIFI Modem with WIFI networking function and high speed data transmission, and supports the standard IEEE 802.11b/g/n protocol, the complete TCP/IP protocol stack. This accessory needs to be usedwithour tracker VT200 series, which can be configured with multiple WIFI APS, and the device will preferfully use WIFI transmission to upload positioning data. Using A02 not only solves the problem of affecting data transmission in the case of no GSM network or poor GSM network signal, but also saves traffic.
Detail:
A02 is a WIFI Modem with WIFI networking function and high speed data transmission, and supports the standard IEEE 802.11b/g/n protocol, the complete TCP/IP protocol stack. This accessory needs to be usedwithour tracker VT200 series, which can be configured with multiple WIFI APS, and the device will preferfully use WIFI transmission to upload positioning data. Using A02 not only solves the problem of affecting data transmission in the case of no GSM network or poor GSM network signal, but also saves traffic.
Features:
A02 is a WIFI Modem with WIFI networking function and high speed data transmission, and supports the standard IEEE 802.11b/g/n protocol, the complete TCP/IP protocol stack.
This accessory needs to be usedwithour tracker VT200 series, which can be configured with multiple WIFI APS, and the device will preferfully use WIFI transmission to upload positioning data.
Using A02 not only solves the problem of affecting data transmission in the case of no GSM network or poor GSM network signal, but also saves traffic.
It can be applied to fleet management, public transportation management, school bus management, bus operation management, high-risk freight vehicle management, etc.
Specification:
|
Item
|
Specification |
| Module Model | ESP-07S |
| Antenna | External Antenna |
| Spectrum range | 2.4GHz-2.5GHz (2400M-2483.5M) |
| Working Temperature | -40℃~85℃ |
| Storage environment |
-40℃~125℃，<90%RH
|
| Power supply | 5V，Supply current>500mA |
| Wireless standard | 802.11b/b/n |
| Encryption type | WEP/TKIP/AES |
| Network protocol | IPV4，TCP/UDP/HTTP/FTP |
| Port | RS232 |
| Serial baud rate | 115200 |
| Security | WEP/WPA-PSK/WPA2-PSK |
| Module Certification | FCC、CE、IC、REACH、RoHS、SRRC、NCC、TELEC、ANATEL、KCC |
Optional Accessories:
Vehicle Tracker
